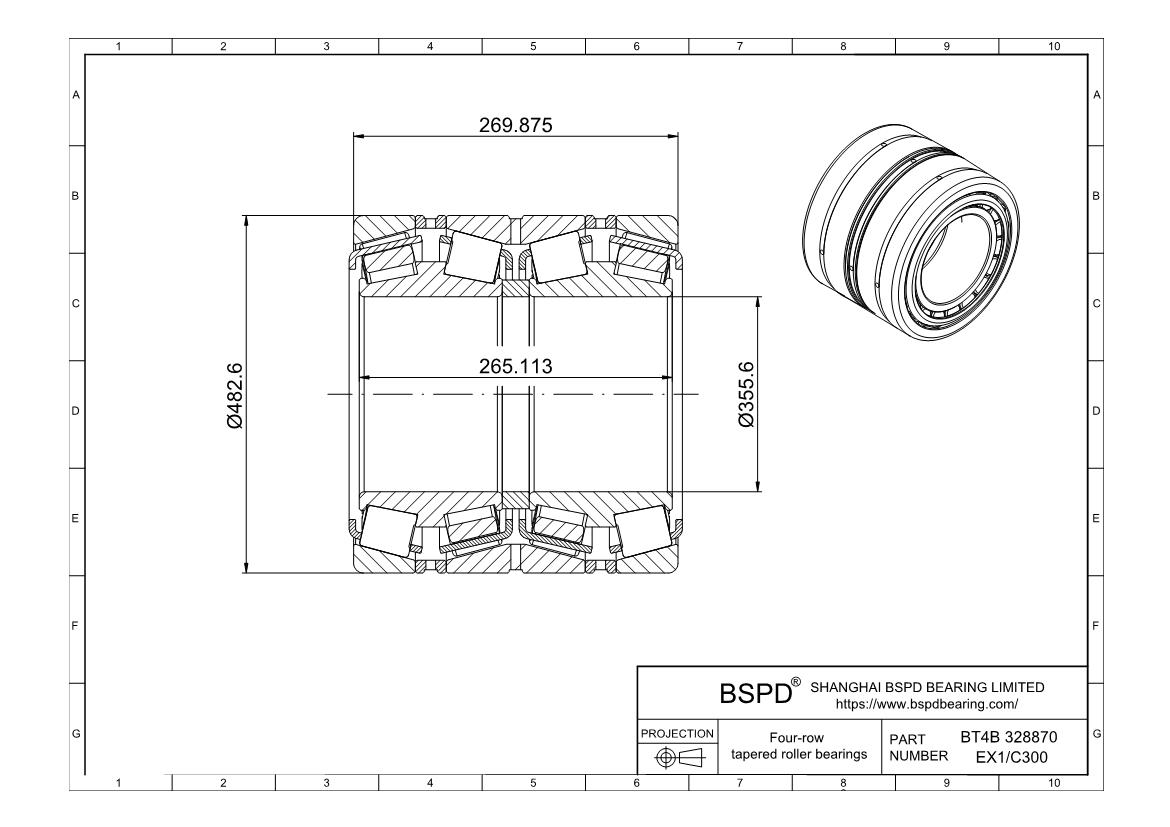

BT4B 328870 EX1/C300 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 355.6 mm； Outer Diameter: 482.6 mm； Width (Thickness): ;

BT4B 328870 EX1/C300
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4B 328870 EX1/C300
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia355.6 mm
Bore Dia Tolerance-0.04mm to 0
Outer Dia482.6 mm
Outer Dia Tolerance-0.045mm to 0
Total Bearing Width Over Inner Rings265.113 mm
Total Bearing Width Over Outer Rings269.875 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load798750 lbf
Static Radial Load1687500 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight297.62 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4B 328870 EX1/C300
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
