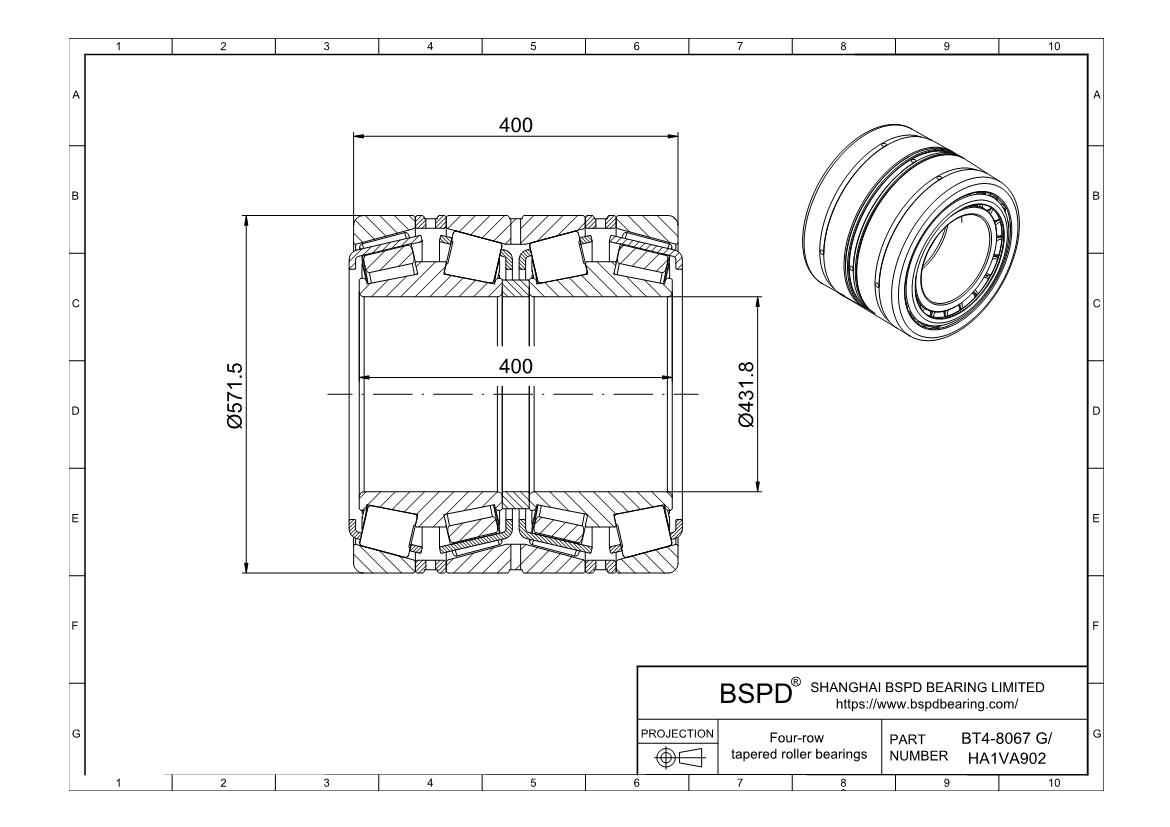

BT4-8067 G/HA1VA902 Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 431.8 mm； Outer Diameter: 571.5 mm； Width (Thickness): ;

BT4-8067 G/HA1VA902
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4-8067 G/HA1VA902
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia431.8 mm
Bore Dia Tolerance-0.045mm to 0
Outer Dia571.5 mm
Outer Dia Tolerance-0.05mm to 0
Total Bearing Width Over Inner Rings400 mm
Total Bearing Width Over Outer Rings400 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load1089000 lbf
Static Radial Load2857500 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight540.13 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4-8067 G/HA1VA902
