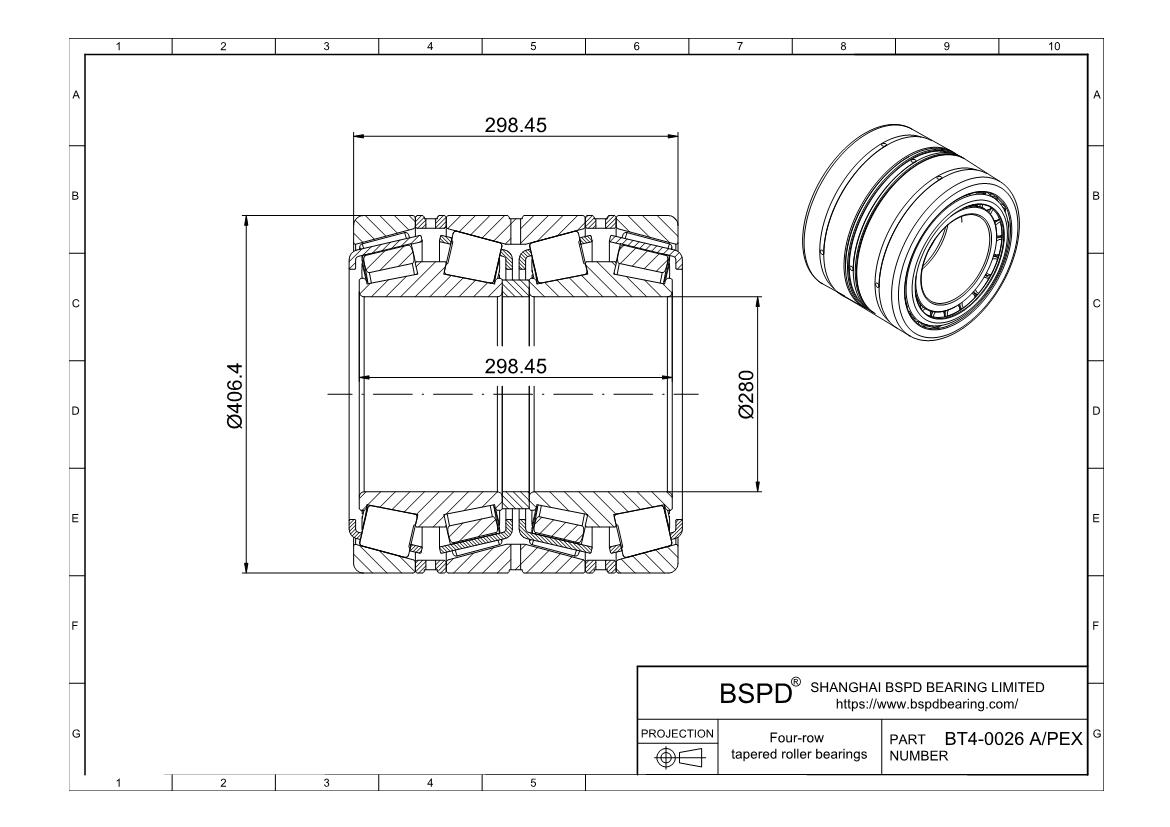

BT4-0026 A/PEX Four-row tapered roller bearings
Dimensions: Bore (Inner) Diameter: 280 mm； Outer Diameter: 406.4 mm； Width (Thickness): ;

BT4-0026 A/PEX
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT4-0026 A/PEX
System of MeasurementMetric
Bearing TypeRoller
Roller Bearing TypeTapered Roller
TypeBearing
For Load DirectionCombined Radial and Thrust
ConstructionFour-row
Seal TypeOpen
Bore Dia280 mm
Bore Dia Tolerance-0.035mm to 0
Outer Dia406.4 mm
Outer Dia Tolerance-0.045mm to 0
Total Bearing Width Over Inner Rings298.45 mm
Total Bearing Width Over Outer Rings298.45 mm
Ring Material52100 Chrome Steel
Cage MaterialSteel
Roller Material52100 Chrome Steel
Dynamic Radial Load933750 lbf
Static Radial Load2025000 lbf
LubricationRequired
Temperature Range-30° to 110 °C
ABEC RatingABEC-1
RoHSCompliant
REACHCompliant
Weight297.62 lb
Radial ClearanceStandard (Available in C3/C4/C5)
BT4-0026 A/PEX
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
