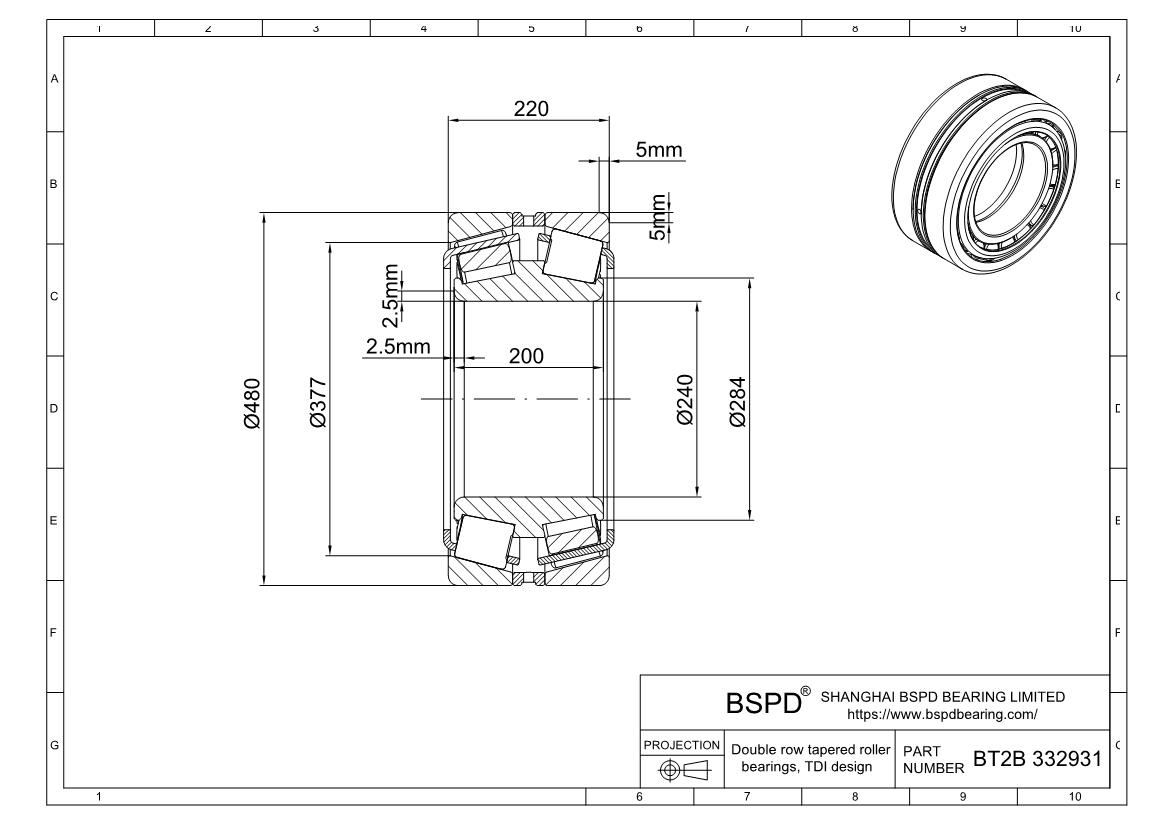

BT2B 332931 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 240 mm； Outer Diameter: 480 mm； Width (Thickness): 220 mm;

BT2B 332931
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332931
Bore diameter240 mm
Outside diameter480 mm
Total width220 mm
Shoulder diameter of inner ring284 mm
Width of outer ring200 mm
Chamfer minimum dimension of inner ring (r1,2)2.5 mm
Chamfer minimum dimension of outer ring (r3,4)5 mm
Basic dynamic load rating (Cr)3615 kn
Basic static load rating (Cor)5500 kN
Fatigue load limit (Pu)465 kN
Mass183 kg
Limiting value (e)0.72
Axial load factor (Y0)0.9
Axial load factor (Y1)0.94
Axial load factor (Y2)1.4
Comparative radial load rating (CF)900
Comparative axial load rating (CFA)634
Thrust factor (K)0.82
BT2B 332931
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
