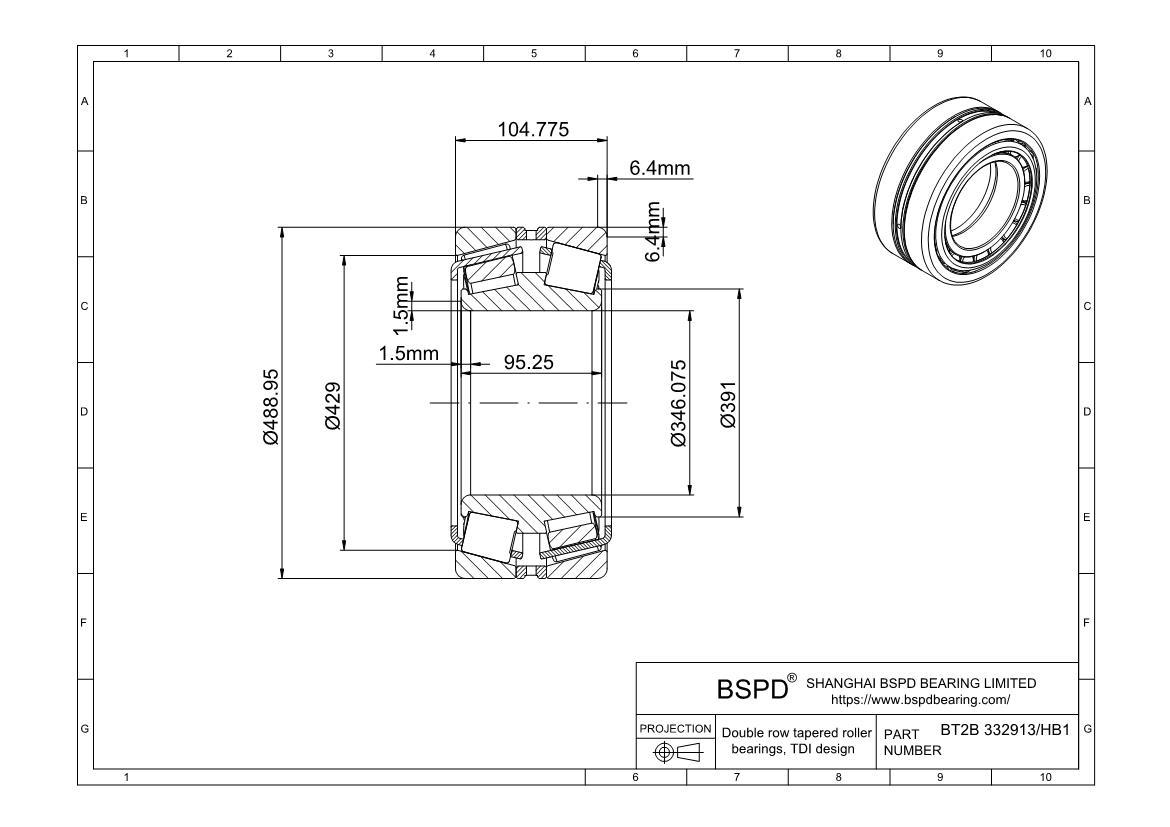

BT2B 332913/HB1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 346.075 mm； Outer Diameter: 488.95 mm； Width (Thickness): 104.775 mm;

BT2B 332913/HB1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332913/HB1
Bore diameter346.075 mm
Outside diameter488.95 mm
Total width104.775 mm
Shoulder diameter of inner ring391 mm
Width of outer ring95.25 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic dynamic load rating (Cr)675 kn
Basic static load rating (Cor)2750 kN
Fatigue load limit (Pu)228 kN
Mass62 kg
Limiting value (e)0.5
Axial load factor (Y0)1.3
Axial load factor (Y1)1.35
Axial load factor (Y2)2
Comparative radial load rating (CF)300
Comparative axial load rating (CFA)148
Thrust factor (K)1.17
BT2B 332913/HB1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332913/HB1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
