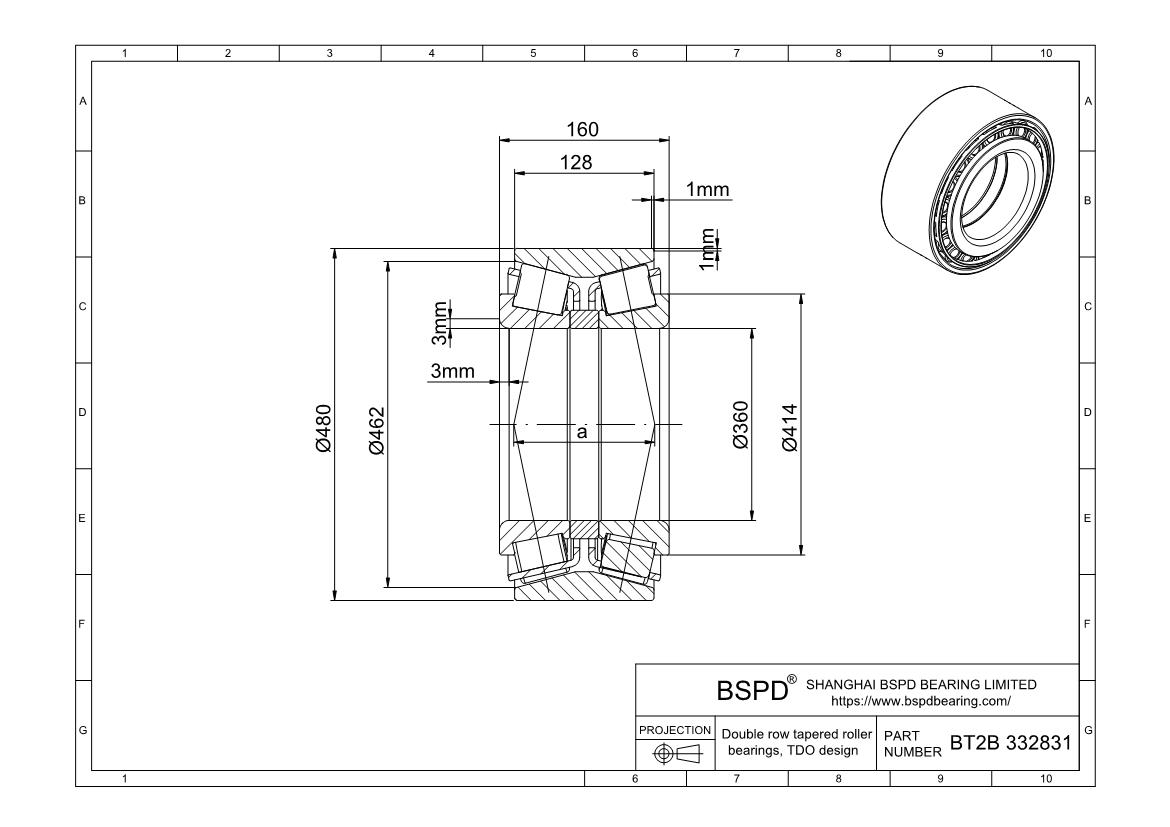

BT2B 332831 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 480 mm； Width (Thickness): 160 mm;

BT2B 332831
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332831
Bore diameter360 mm
Outside diameter480 mm
Total width160 mm
Shoulder diameter of inner ring414 mm
Width of outer ring128 mm
Chamfer minimum dimension of inner ring (r1,2)3 mm
Basic dynamic load rating (Cr)2211 kn
Basic static load rating (Cor)5000 kN
Fatigue load limit (Pu)405 kN
Mass73 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)540
Comparative axial load rating (CFA)175
Thrust factor (K)1.77
BT2B 332831
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332831 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
