BT2B 332830 Double row tapered roller bearings& TDO design

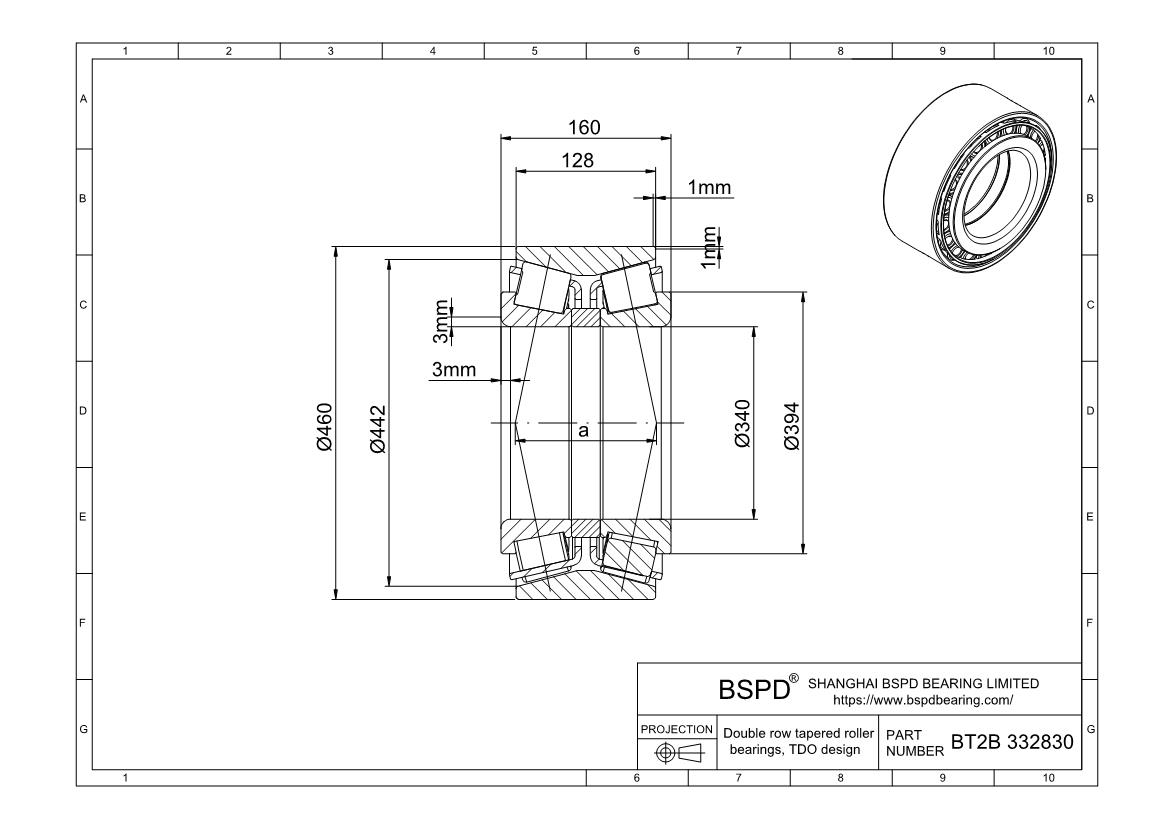

Dimensions: Bore (Inner) Diameter: 340 mm； Outer Diameter: 460 mm； Width (Thickness): 160 mm;

BT2B 332830
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332830
Bore diameter340 mm
Outside diameter460 mm
Total width160 mm
Shoulder diameter of inner ring394 mm
Width of outer ring128 mm
Chamfer minimum dimension of inner ring (r1,2)3 mm
Basic dynamic load rating (Cr)2196 kn
Basic static load rating (Cor)4900 kN
Fatigue load limit (Pu)400 kN
Mass71 kg
Limiting value (e)0.31
Axial load factor (Y0)2.2
Axial load factor (Y1)2.2
Axial load factor (Y2)3.3
Comparative radial load rating (CF)540
Comparative axial load rating (CFA)167
Thrust factor (K)1.86
BT2B 332830
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332830 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
