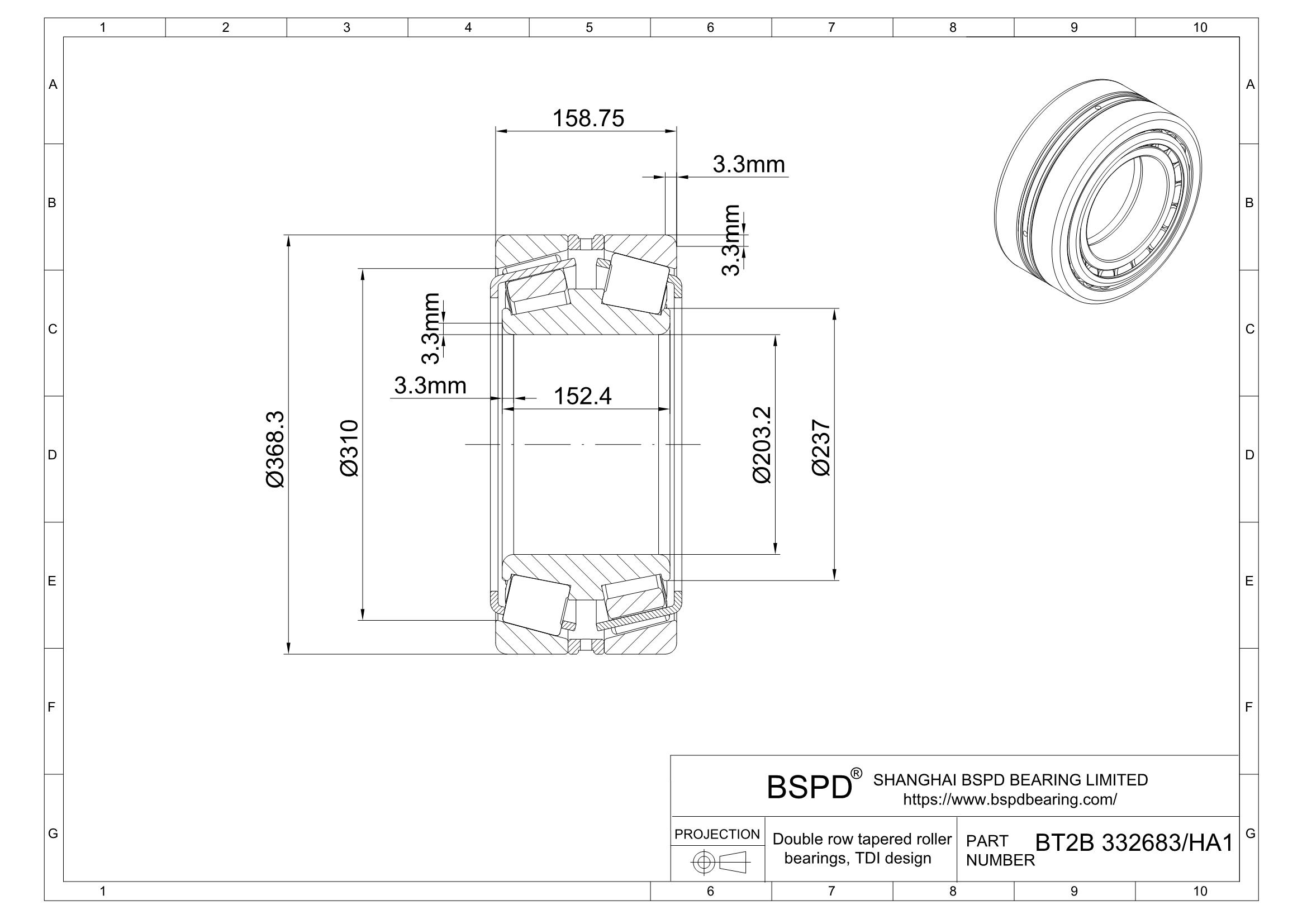

BT2B 332683/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 203.2 mm； Outer Diameter: 368.3 mm； Width (Thickness): 158.75 mm;

BT2B 332683/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332683/HA1
Bore diameter203.2 mm
Outside diameter368.3 mm
Total width158.75 mm
Shoulder diameter of inner ring237 mm
Width of outer ring152.4 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)1985 kn
Basic static load rating (Cor)3350 kN
Fatigue load limit (Pu)305 kN
Mass75 kg
Limiting value (e)0.4
Axial load factor (Y0)1.6
Axial load factor (Y1)1.7
Axial load factor (Y2)2.5
Comparative radial load rating (CF)490
Comparative axial load rating (CFA)193
Thrust factor (K)1.45
BT2B 332683/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332683/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
