BT2B 332603/HA1 Double row tapered roller bearings& TDO design

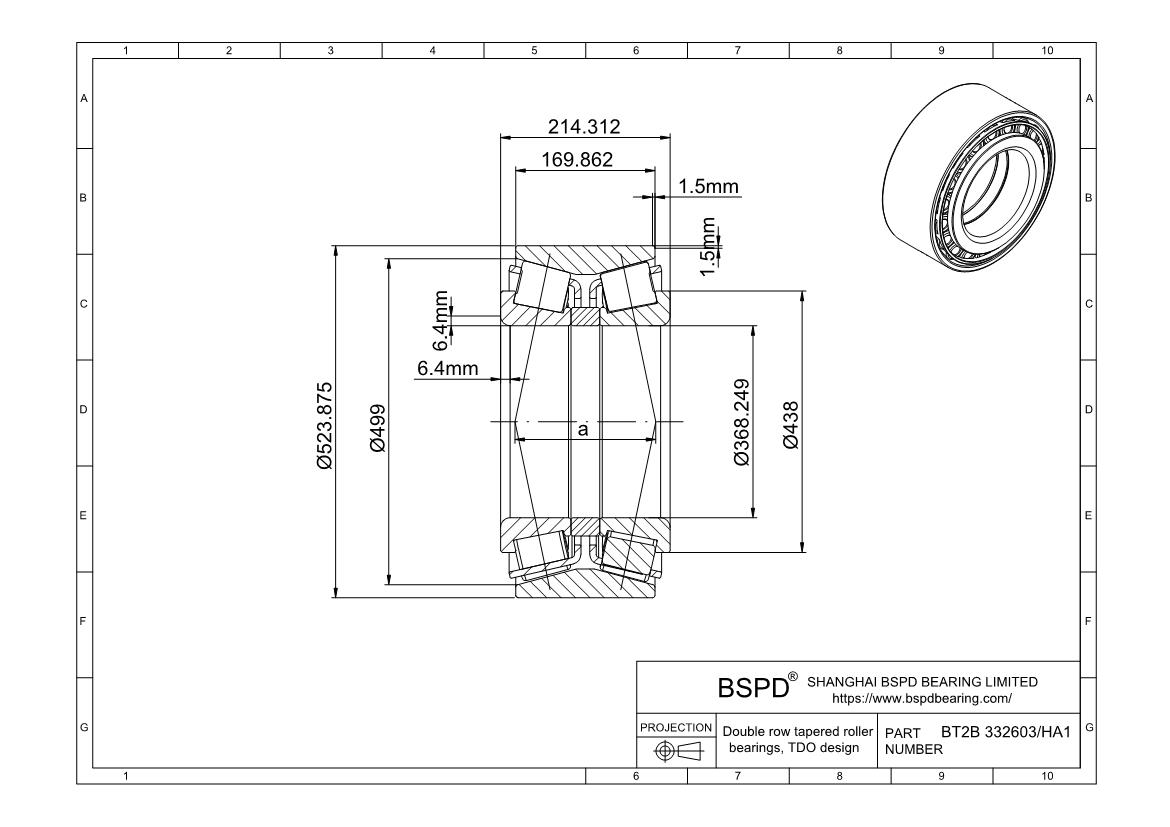

Dimensions: Bore (Inner) Diameter: 368.249 mm； Outer Diameter: 523.875 mm； Width (Thickness): 214.312 mm;

BT2B 332603/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332603/HA1
Bore diameter368.249 mm
Outside diameter523.875 mm
Total width214.312 mm
Shoulder diameter of inner ring438 mm
Width of outer ring169.862 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Basic dynamic load rating (Cr)3380 kn
Basic static load rating (Cor)7500 kN
Fatigue load limit (Pu)585 kN
Mass140 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)830
Comparative axial load rating (CFA)273
Thrust factor (K)1.76
BT2B 332603/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332603/HA1 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
