BT2B 332536/HA1
Double row tapered roller bearings& TDI design

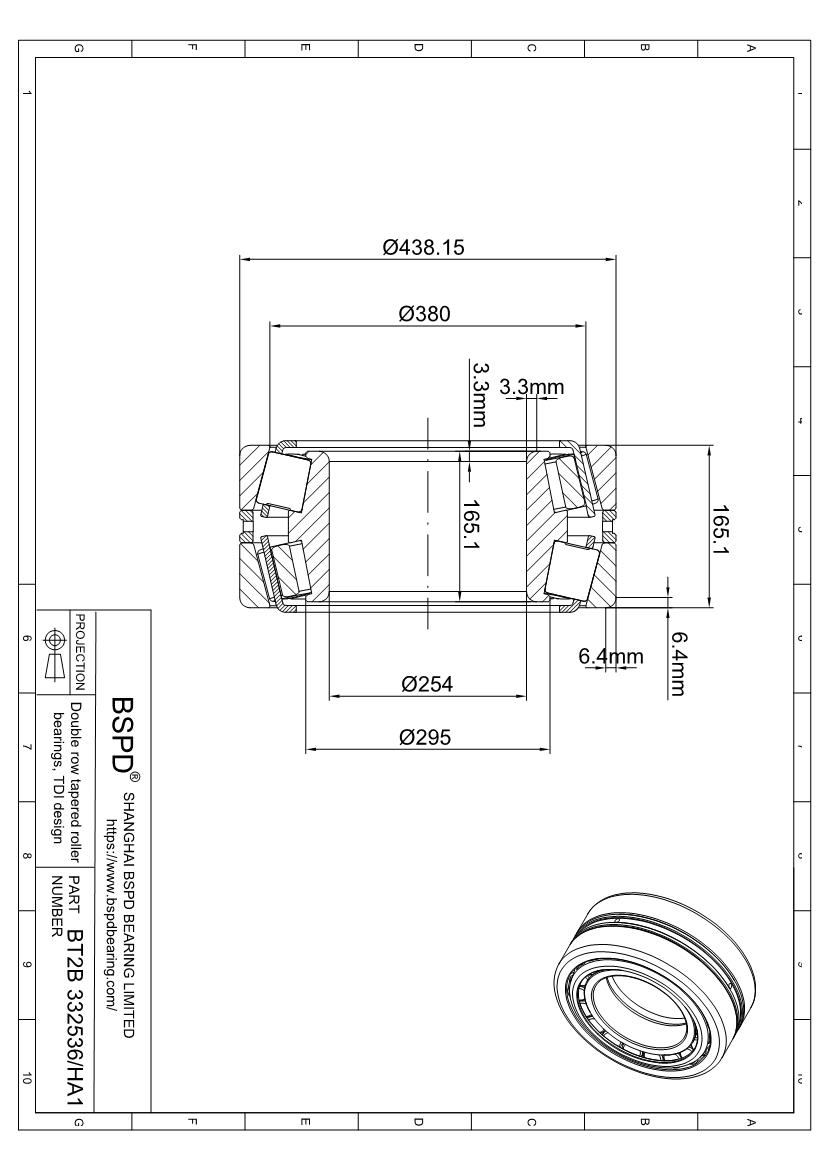

Dimensions: Bore (Inner) Diameter: 254 mm； Outer Diameter: 438.15 mm； Width (Thickness): 165.1 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | BT2B 332536/HA1 |
| Bore diameter | 254 mm |
| Outside diameter | 438.15 mm |
| Total width | 165.1 mm |
| Shoulder diameter of inner ring | 295 mm |
| Width of outer ring | 165.1 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 3.3 mm |
| Chamfer minimum dimension of outer ring (r3,4) | 6.4 mm |
| Basic dynamic load rating (Cr) | 2685 kn |
| Basic static load rating (Cor) | 4250 kN |
| Fatigue load limit (Pu) | 365 kN |
| Mass | 100 kg |
| Limiting value (e) | 0.35 |
| Axial load factor (Y0) | 1.8 |
| Axial load factor (Y1) | 1.9 |
| Axial load factor (Y2) | 2.9 |
| Comparative radial load rating (CF) | 670 |
| Comparative axial load rating (CFA) | 233 |
| Thrust factor (K) | 1.63 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332536/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
