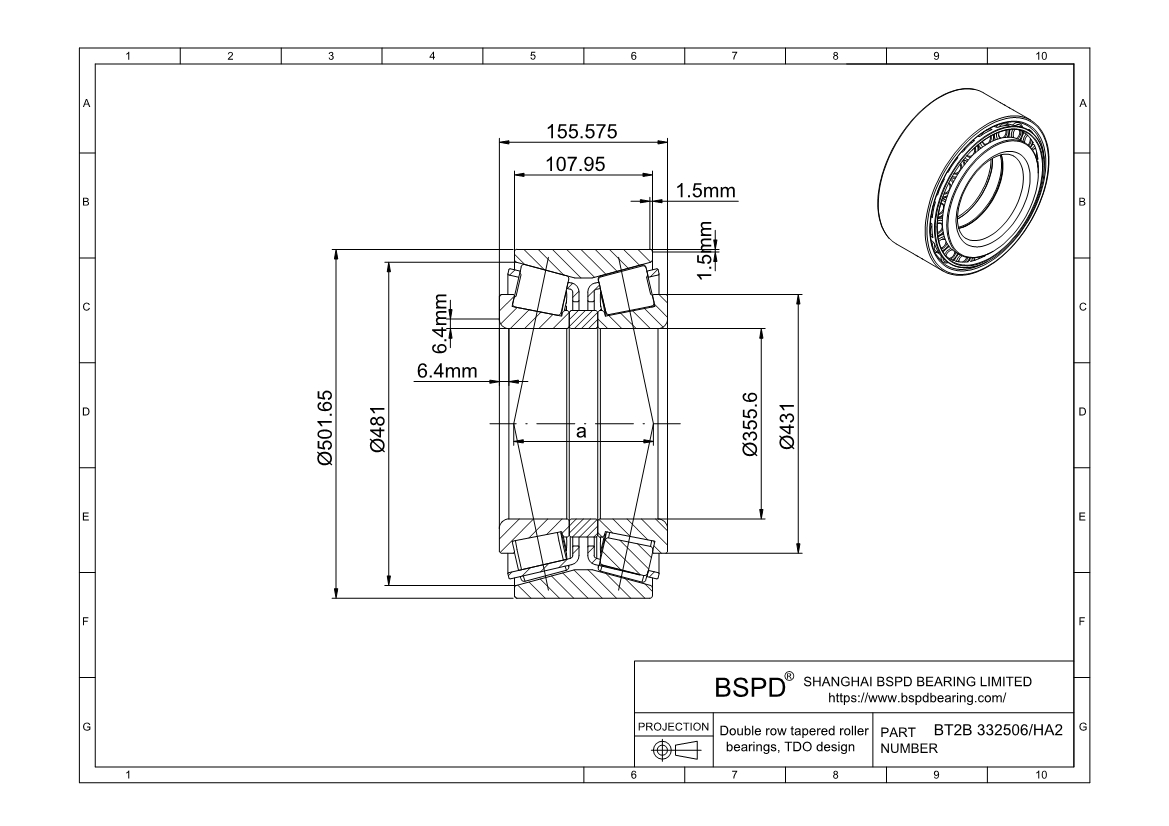

BT2B 332506/HA2 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 355.6 mm； Outer Diameter: 501.65 mm； Width (Thickness): 155.575 mm;

BT2B 332506/HA2
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332506/HA2
Bore diameter355.6 mm
Outside diameter501.65 mm
Total width155.575 mm
Shoulder diameter of inner ring431 mm
Width of outer ring107.95 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Basic dynamic load rating (Cr)1976 kn
Basic static load rating (Cor)4250 kN
Fatigue load limit (Pu)345 kN
Mass87 kg
Limiting value (e)0.44
Axial load factor (Y0)1.4
Axial load factor (Y1)1.5
Axial load factor (Y2)2.3
Comparative radial load rating (CF)480
Comparative axial load rating (CFA)207
Thrust factor (K)1.33
BT2B 332506/HA2
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332506/HA2 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
