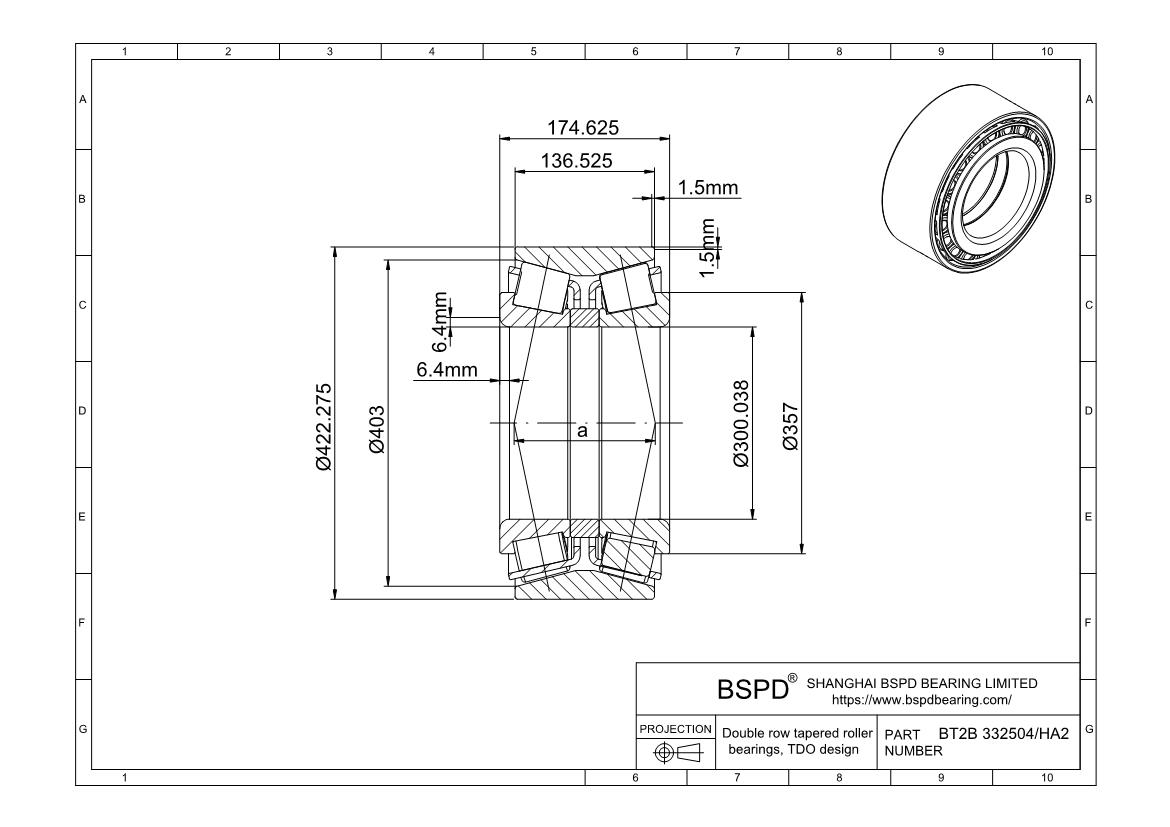

BT2B 332504/HA2 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 300.038 mm； Outer Diameter: 422.275 mm； Width (Thickness): 174.625 mm;

BT2B 332504/HA2
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332504/HA2
Bore diameter300.038 mm
Outside diameter422.275 mm
Total width174.625 mm
Shoulder diameter of inner ring357 mm
Width of outer ring136.525 mm
Chamfer minimum dimension of inner ring (r1,2)6.4 mm
Basic dynamic load rating (Cr)2177 kn
Basic static load rating (Cor)4750 kN
Fatigue load limit (Pu)400 kN
Mass71.5 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)540
Comparative axial load rating (CFA)176
Thrust factor (K)1.73
BT2B 332504/HA2
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 332504/HA2 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
