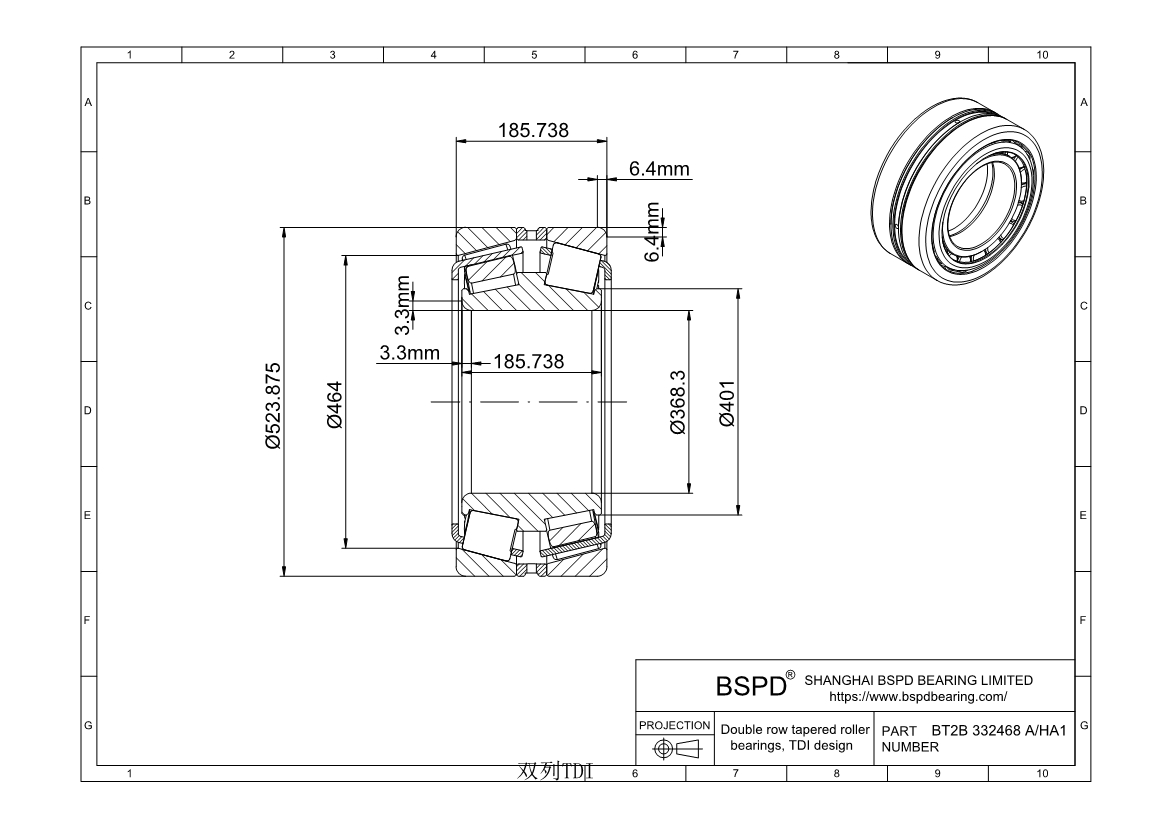

BT2B 332468 A/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 368.3 mm； Outer Diameter: 523.875 mm； Width (Thickness): 185.738 mm;

BT2B 332468 A/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 332468 A/HA1
Bore diameter368.3 mm
Outside diameter523.875 mm
Total width185.738 mm
Shoulder diameter of inner ring401 mm
Width of outer ring185.738 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic dynamic load rating (Cr)3380 kn
Basic static load rating (Cor)7500 kN
Fatigue load limit (Pu)585 kN
Mass140 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)830
Comparative axial load rating (CFA)273
Thrust factor (K)1.76
BT2B 332468 A/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
