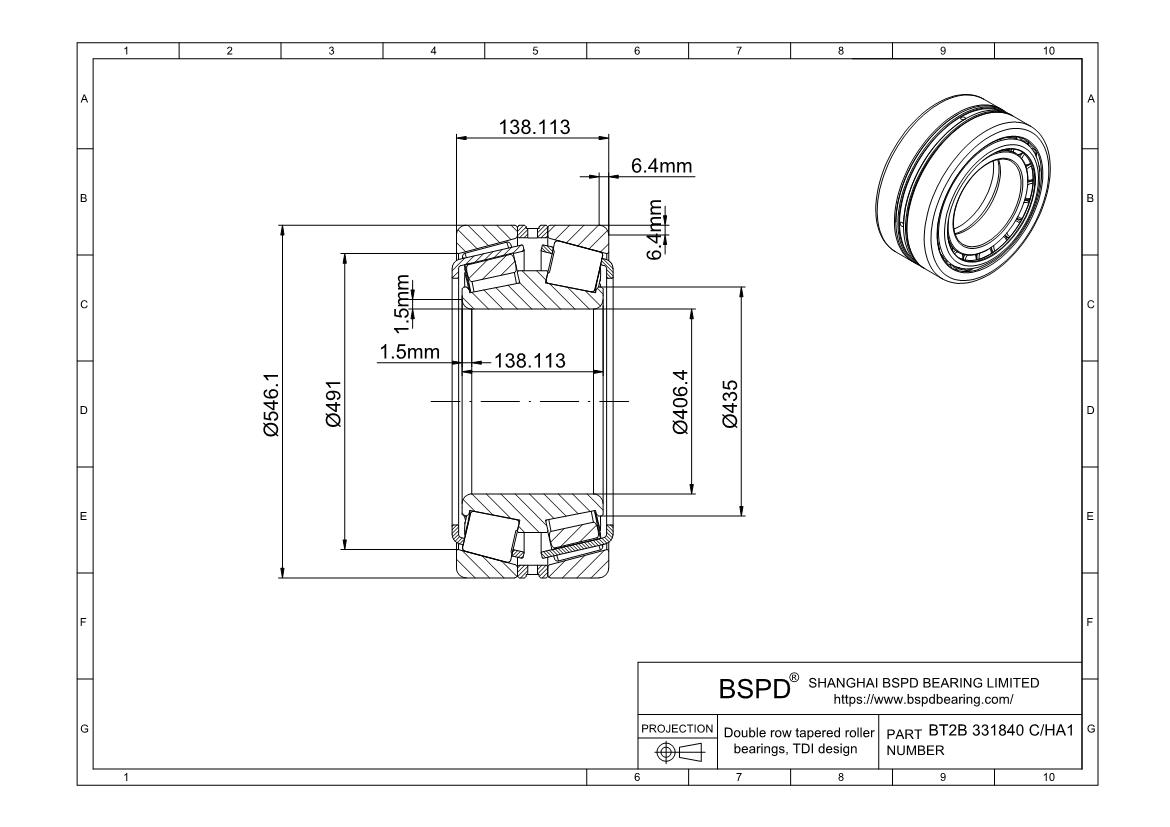

BT2B 331840 C/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 406.4 mm； Outer Diameter: 546.1 mm； Width (Thickness): 138.113 mm;

BT2B 331840 C/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 331840 C/HA1
Bore diameter406.4 mm
Outside diameter546.1 mm
Total width138.113 mm
Shoulder diameter of inner ring435 mm
Width of outer ring138.113 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic dynamic load rating (Cr)2339 kn
Basic static load rating (Cor)5100 kN
Fatigue load limit (Pu)405 kN
Mass89 kg
Limiting value (e)0.48
Axial load factor (Y0)1.4
Axial load factor (Y1)1.4
Axial load factor (Y2)2.1
Comparative radial load rating (CF)570
Comparative axial load rating (CFA)264
Thrust factor (K)1.23
BT2B 331840 C/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 331840 C/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
