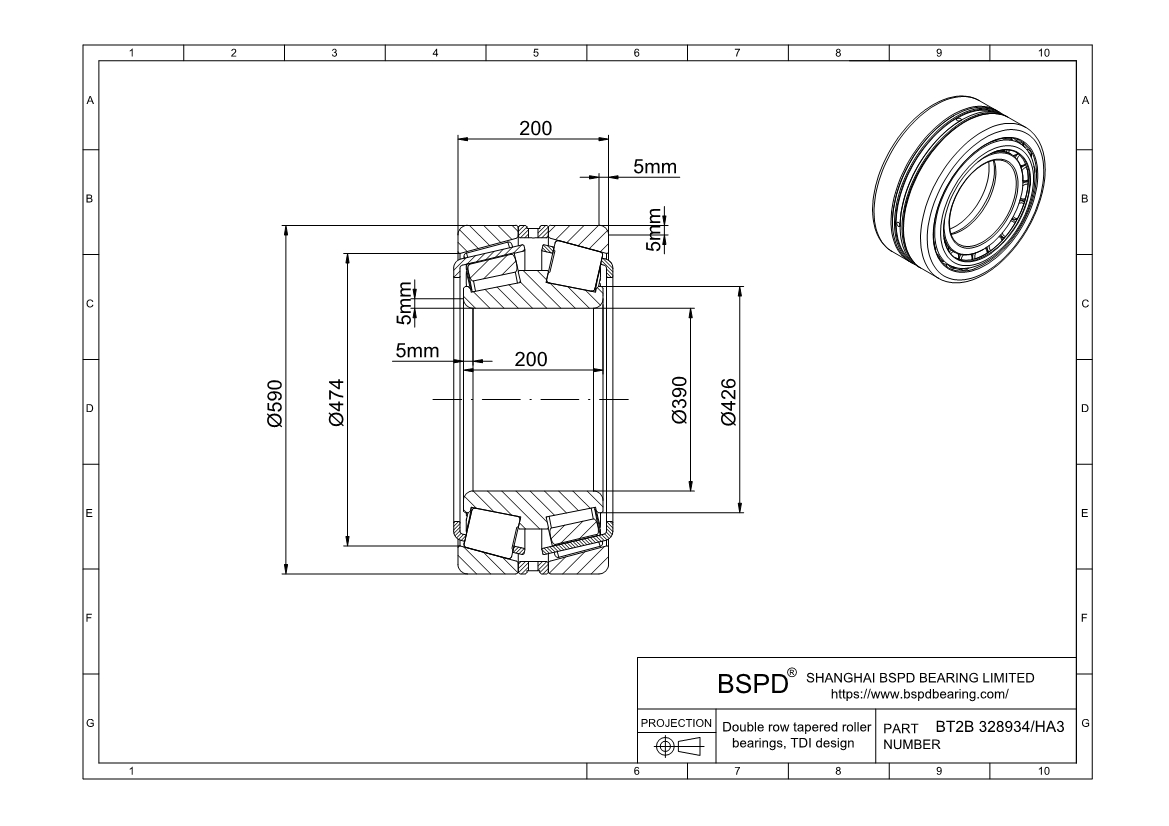

BT2B 328934/HA3 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 390 mm； Outer Diameter: 590 mm； Width (Thickness): 200 mm;

BT2B 328934/HA3
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328934/HA3
Bore diameter390 mm
Outside diameter590 mm
Total width200 mm
Shoulder diameter of inner ring426 mm
Width of outer ring200 mm
Chamfer minimum dimension of inner ring (r1,2)5 mm
Chamfer minimum dimension of outer ring (r3,4)5 mm
Basic dynamic load rating (Cr)2967 kn
Basic static load rating (Cor)6550 kN
Fatigue load limit (Pu)510 kN
Mass200 kg
Limiting value (e)0.83
Axial load factor (Y0)0.8
Axial load factor (Y1)0.81
Axial load factor (Y2)1.2
Comparative radial load rating (CF)735
Comparative axial load rating (CFA)599
Thrust factor (K)0.71
BT2B 328934/HA3
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328934/HA3 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
