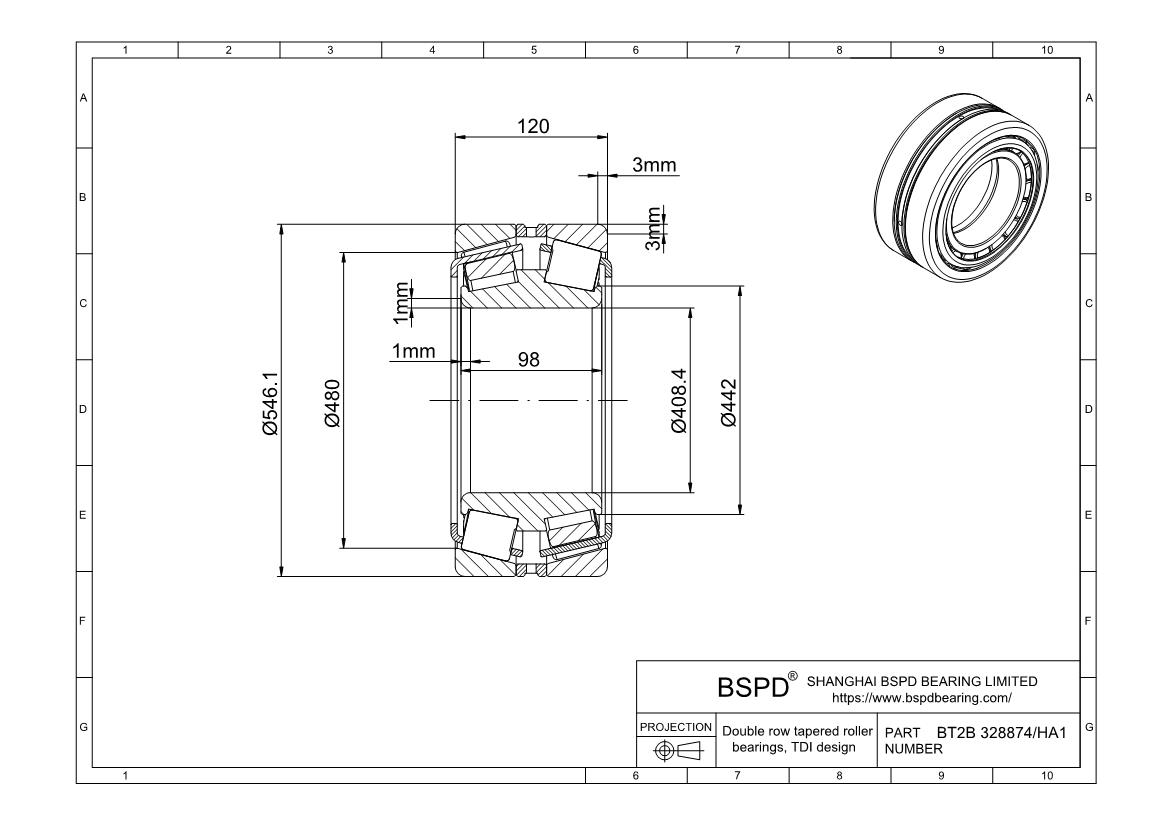

BT2B 328874/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 408.4 mm； Outer Diameter: 546.1 mm； Width (Thickness): 120 mm;

BT2B 328874/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328874/HA1
Bore diameter408.4 mm
Outside diameter546.1 mm
Total width120 mm
Shoulder diameter of inner ring442 mm
Width of outer ring98 mm
Chamfer minimum dimension of inner ring (r1,2)1 mm
Chamfer minimum dimension of outer ring (r3,4)3 mm
Basic dynamic load rating (Cr)1603 kn
Basic static load rating (Cor)3450 kN
Fatigue load limit (Pu)285 kN
Mass76.5 kg
Limiting value (e)0.88
Axial load factor (Y0)0.8
Axial load factor (Y1)0.77
Axial load factor (Y2)1.15
Comparative radial load rating (CF)390
Comparative axial load rating (CFA)329
Thrust factor (K)0.68
BT2B 328874/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328874/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
