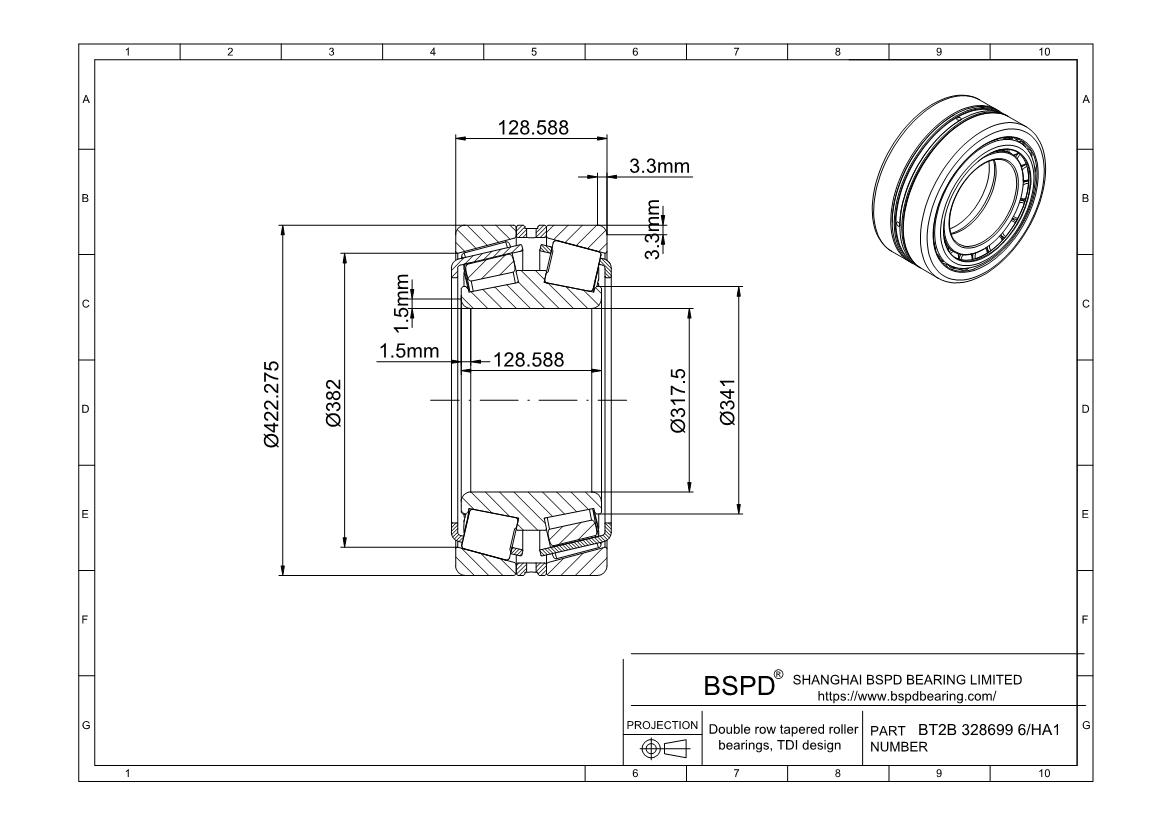

BT2B 328699 6/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 317.5 mm； Outer Diameter: 422.275 mm； Width (Thickness): 128.588 mm;

BT2B 328699 6/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328699 6/HA1
Bore diameter317.5 mm
Outside diameter422.275 mm
Total width128.588 mm
Shoulder diameter of inner ring341 mm
Width of outer ring128.588 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)1785 kn
Basic static load rating (Cor)4150 kN
Fatigue load limit (Pu)345 kN
Mass51.5 kg
Limiting value (e)0.31
Axial load factor (Y0)2.2
Axial load factor (Y1)2.2
Axial load factor (Y2)3.3
Comparative radial load rating (CF)440
Comparative axial load rating (CFA)137
BT2B 328699 6/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328699 6/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
