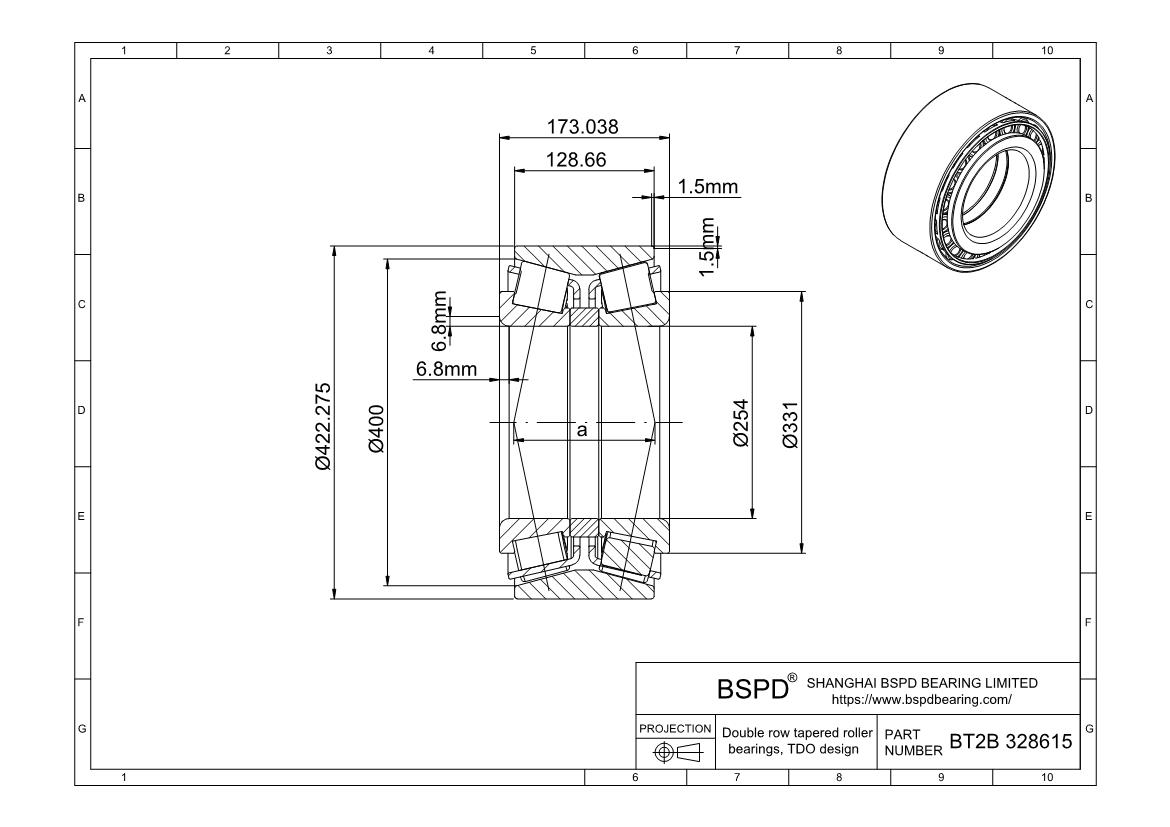

BT2B 328615 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 254 mm； Outer Diameter: 422.275 mm； Width (Thickness): 173.038 mm;

BT2B 328615
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328615
Bore diameter254 mm
Outside diameter422.275 mm
Total width173.038 mm
Shoulder diameter of inner ring331 mm
Width of outer ring128.66 mm
Chamfer minimum dimension of inner ring (r1,2)6.8 mm
Basic dynamic load rating (Cr)2393 kn
Basic static load rating (Cor)4050 kN
Fatigue load limit (Pu)355 kN
Mass87.5 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)585
Comparative axial load rating (CFA)193
Thrust factor (K)1.76
BT2B 328615
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328615 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
