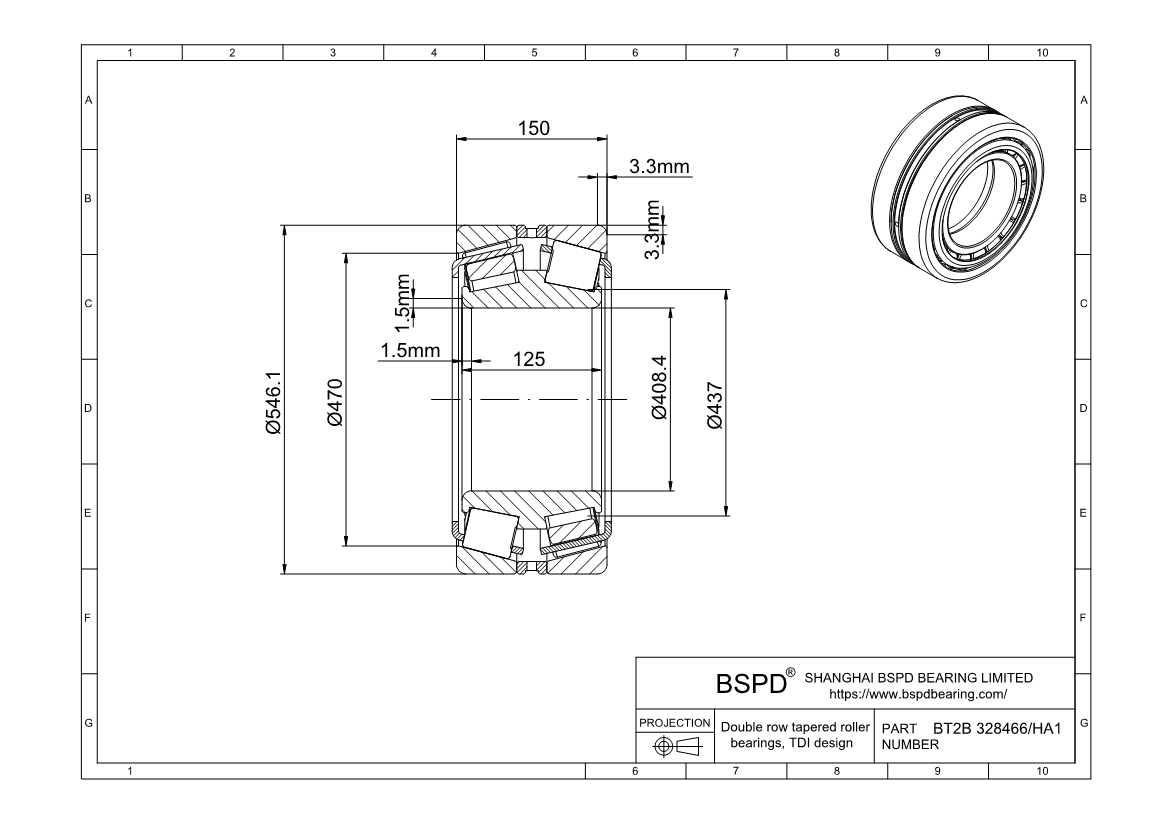

BT2B 328466/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 408.4 mm； Outer Diameter: 546.1 mm； Width (Thickness): 150 mm;

BT2B 328466/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328466/HA1
Bore diameter408.4 mm
Outside diameter546.1 mm
Total width150 mm
Shoulder diameter of inner ring437 mm
Width of outer ring125 mm
Chamfer minimum dimension of inner ring (r1,2)1.5 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)1963 kn
Basic static load rating (Cor)4750 kN
Fatigue load limit (Pu)375 kN
Mass99 kg
Limiting value (e)0.83
Axial load factor (Y0)0.8
Axial load factor (Y1)0.81
Axial load factor (Y2)1.2
Comparative radial load rating (CF)480
Comparative axial load rating (CFA)387
Thrust factor (K)0.71
BT2B 328466/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328466/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
