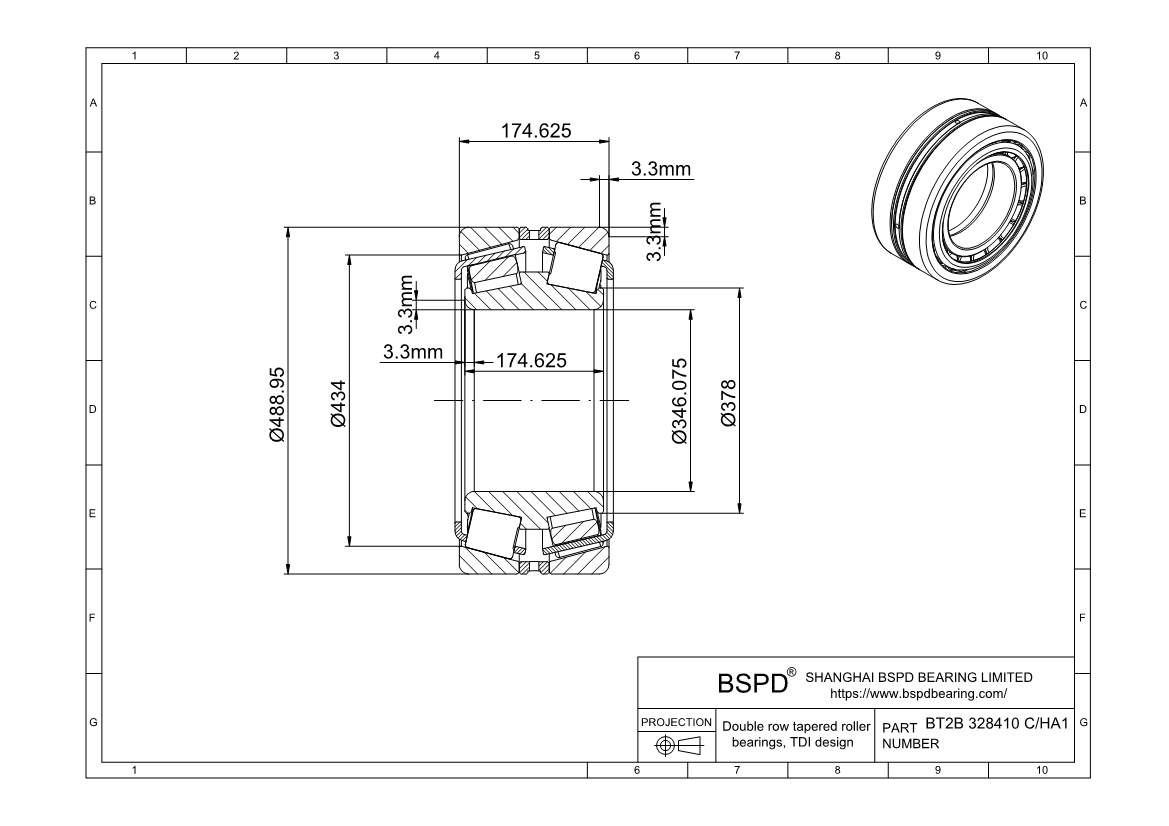

BT2B 328410 C/HA1 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 346.075 mm； Outer Diameter: 488.95 mm； Width (Thickness): 174.625 mm;

BT2B 328410 C/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328410 C/HA1
Bore diameter346.075 mm
Outside diameter488.95 mm
Total width174.625 mm
Shoulder diameter of inner ring378 mm
Width of outer ring174.625 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)3.3 mm
Basic dynamic load rating (Cr)2835 kn
Basic static load rating (Cor)6300 kN
Fatigue load limit (Pu)510 kN
Mass113 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)695
Comparative axial load rating (CFA)230
Thrust factor (K)1.74
BT2B 328410 C/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328410 C/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
