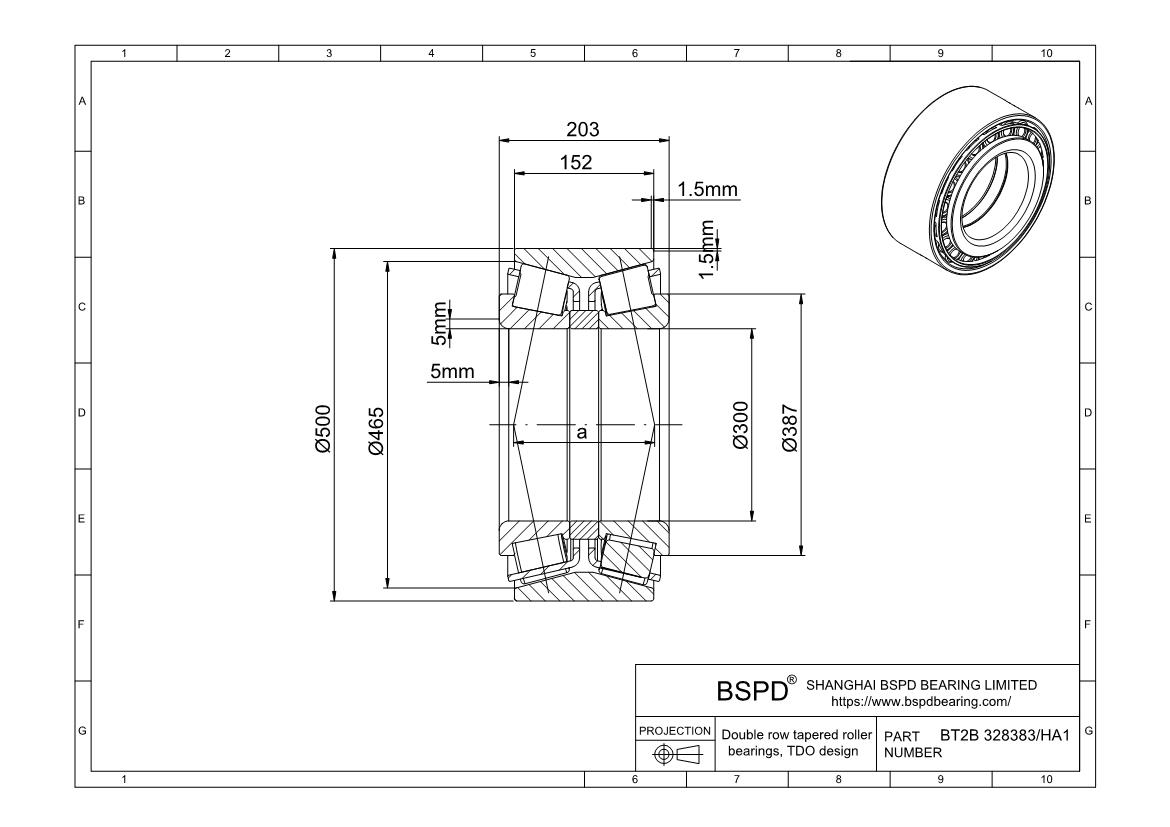

BT2B 328383/HA1 Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 500 mm； Width (Thickness): 203 mm;

BT2B 328383/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328383/HA1
Bore diameter300 mm
Outside diameter500 mm
Total width203 mm
Shoulder diameter of inner ring387 mm
Width of outer ring152 mm
Chamfer minimum dimension of inner ring (r1,2)5 mm
Basic dynamic load rating (Cr)2992 kn
Basic static load rating (Cor)5100 kN
Fatigue load limit (Pu)425 kN
Mass140 kg
Limiting value (e)0.4
Axial load factor (Y0)1.6
Axial load factor (Y1)1.7
Axial load factor (Y2)2.5
Comparative radial load rating (CF)735
Comparative axial load rating (CFA)297
Thrust factor (K)1.43
BT2B 328383/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328383/HA1 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
