BT2B 328283/HA1 Double row tapered roller bearings& TDI design

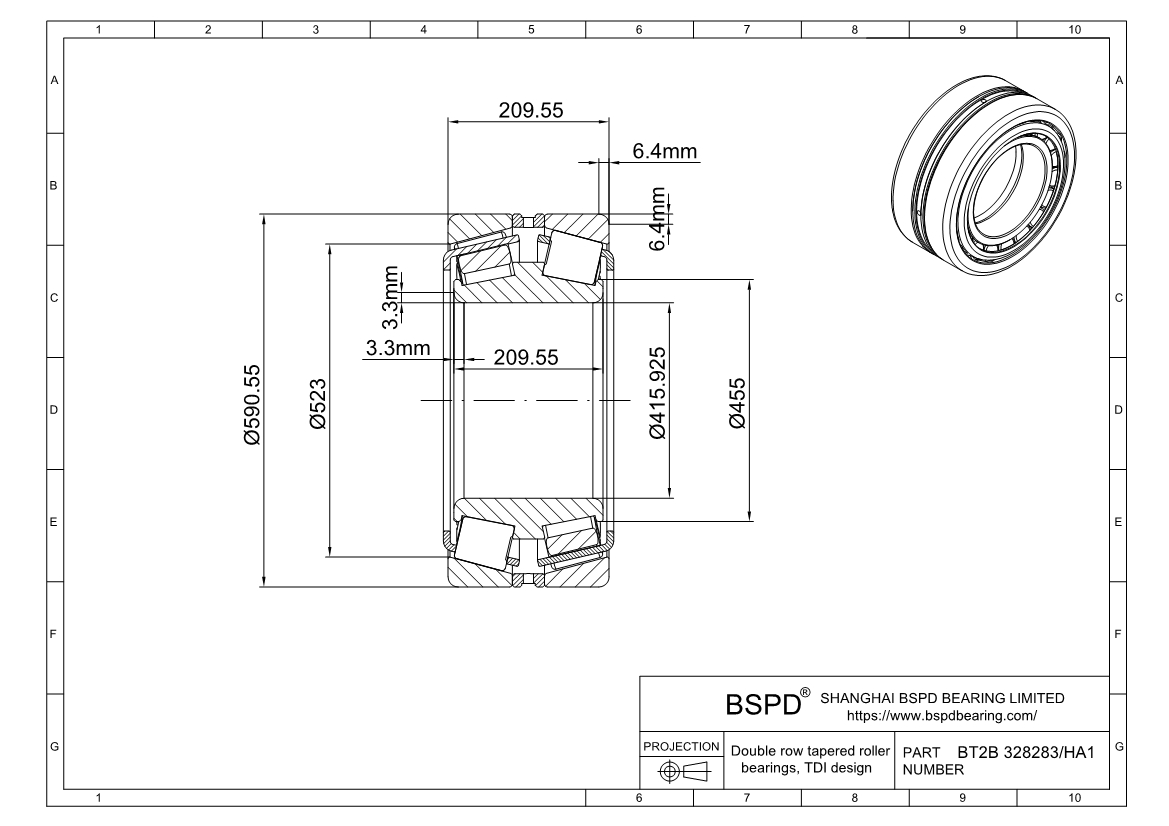

Dimensions: Bore (Inner) Diameter: 415.925 mm； Outer Diameter: 590.55 mm； Width (Thickness): 209.55 mm;

BT2B 328283/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2B 328283/HA1
Bore diameter415.925 mm
Outside diameter590.55 mm
Total width209.55 mm
Shoulder diameter of inner ring455 mm
Width of outer ring209.55 mm
Chamfer minimum dimension of inner ring (r1,2)3.3 mm
Chamfer minimum dimension of outer ring (r3,4)6.4 mm
Basic dynamic load rating (Cr)4175 kn
Basic static load rating (Cor)9650 kN
Fatigue load limit (Pu)720 kN
Mass192 kg
Limiting value (e)0.33
Axial load factor (Y0)2
Axial load factor (Y1)2
Axial load factor (Y2)3
Comparative radial load rating (CF)1040
Comparative axial load rating (CFA)332
Thrust factor (K)1.76
BT2B 328283/HA1
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328283/HA1 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
