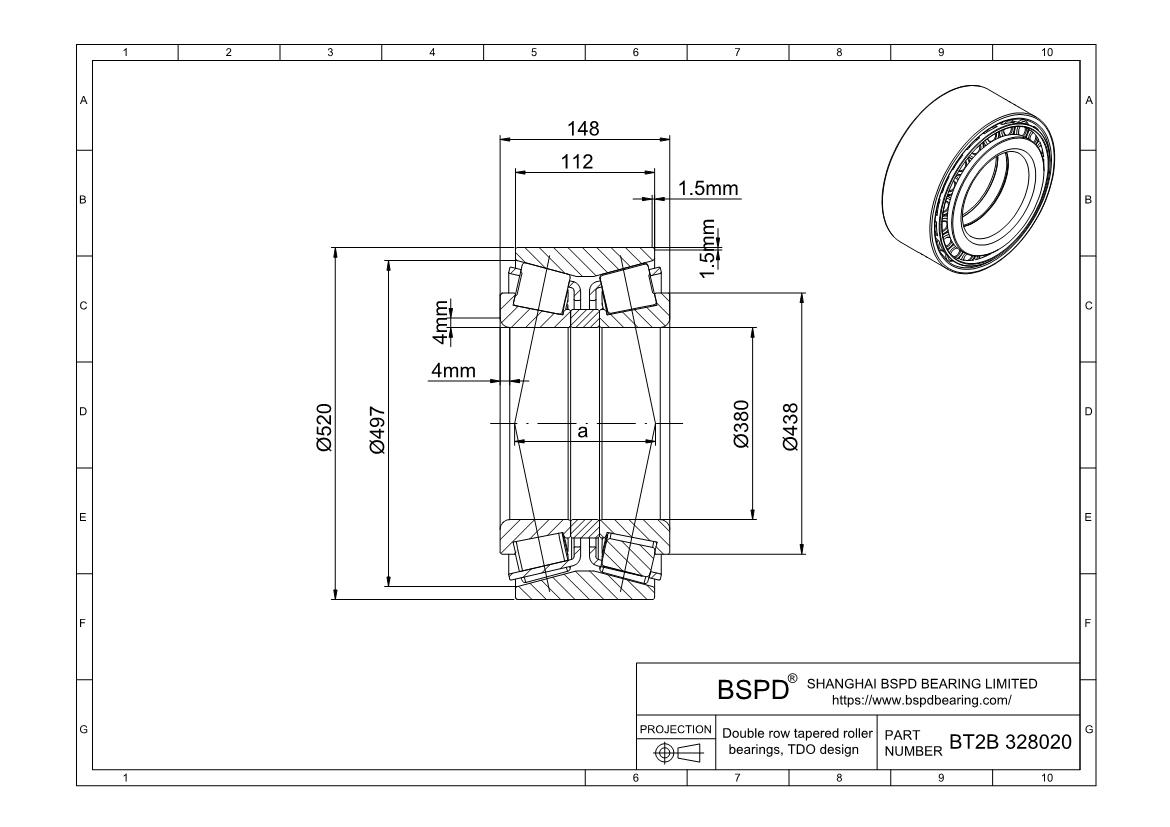

BT2B 328020
Double row tapered roller bearings& TDO design
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 520 mm； Width (Thickness): 148 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | BT2B 328020 |
| Bore diameter | 380 mm |
| Outside diameter | 520 mm |
| Total width | 148 mm |
| Shoulder diameter of inner ring | 438 mm |
| Width of outer ring | 112 mm |
| Chamfer minimum dimension of inner ring (r1,2) | 4 mm |
| Basic dynamic load rating (Cr) | 2289 kn |
| Basic static load rating (Cor) | 4500 kN |
| Fatigue load limit (Pu) | 365 kN |
| Mass | 80 kg |
| Limiting value (e) | 0.3 |
| Axial load factor (Y0) | 2.2 |
| Axial load factor (Y1) | 2.3 |
| Axial load factor (Y2) | 3.4 |
| Comparative radial load rating (CF) | 560 |
| Comparative axial load rating (CFA) | 167 |
| Thrust factor (K) | 1.92 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2B 328020 ? Double row tapered roller bearings& TDO design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
