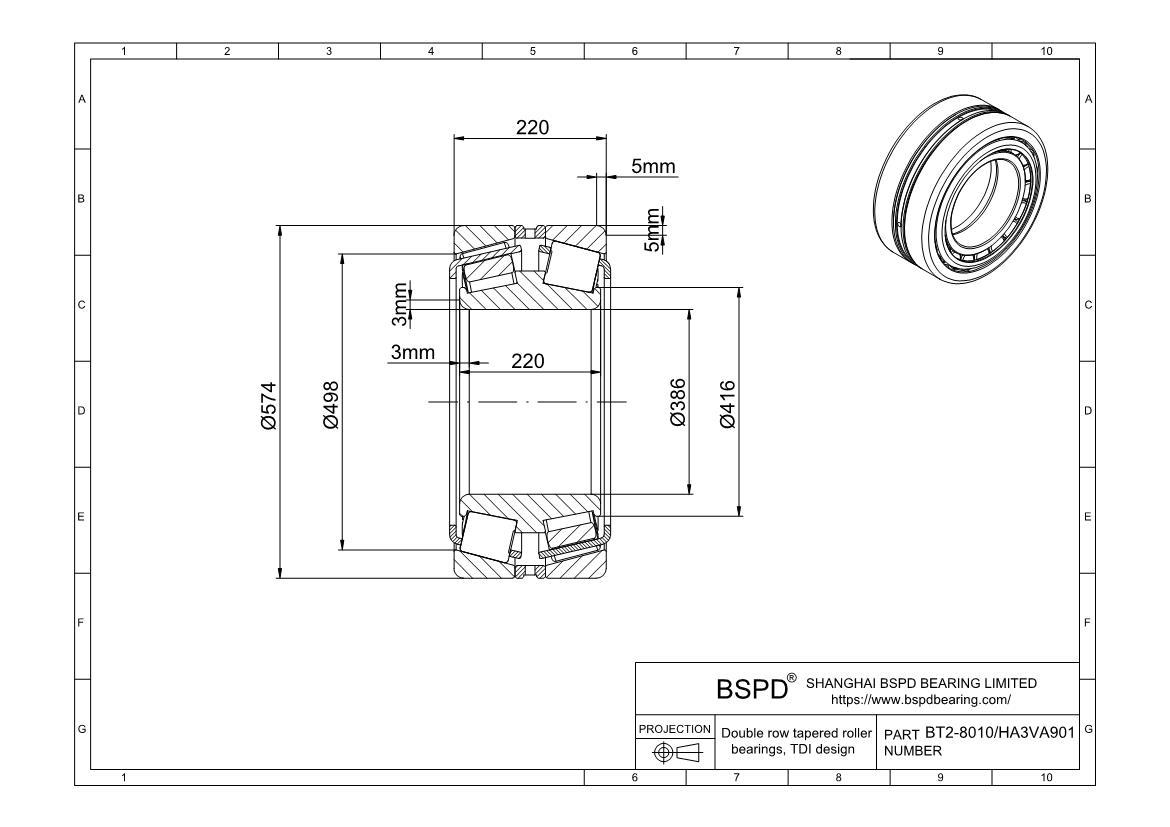

BT2-8010/HA3VA901 Double row tapered roller bearings& TDI design
Dimensions: Bore (Inner) Diameter: 386 mm； Outer Diameter: 574 mm； Width (Thickness): 220 mm;

BT2-8010/HA3VA901
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2-8010/HA3VA901
Bore diameter386 mm
Outside diameter574 mm
Total width220 mm
Shoulder diameter of inner ring416 mm
Width of outer ring220 mm
Chamfer minimum dimension of inner ring (r1,2)3 mm
Chamfer minimum dimension of outer ring (r3,4)5 mm
Basic dynamic load rating (Cr)2967 kn
Basic static load rating (Cor)6550 kN
Fatigue load limit (Pu)510 kN
Mass185 kg
Limiting value (e)0.83
Axial load factor (Y0)0.8
Axial load factor (Y1)0.81
Axial load factor (Y2)1.2
Comparative radial load rating (CF)735
Comparative axial load rating (CFA)599
Thrust factor (K)0.71
BT2-8010/HA3VA901
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2-8010/HA3VA901 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
