BT2-8000/HA3 Double row tapered roller bearings& TDI design

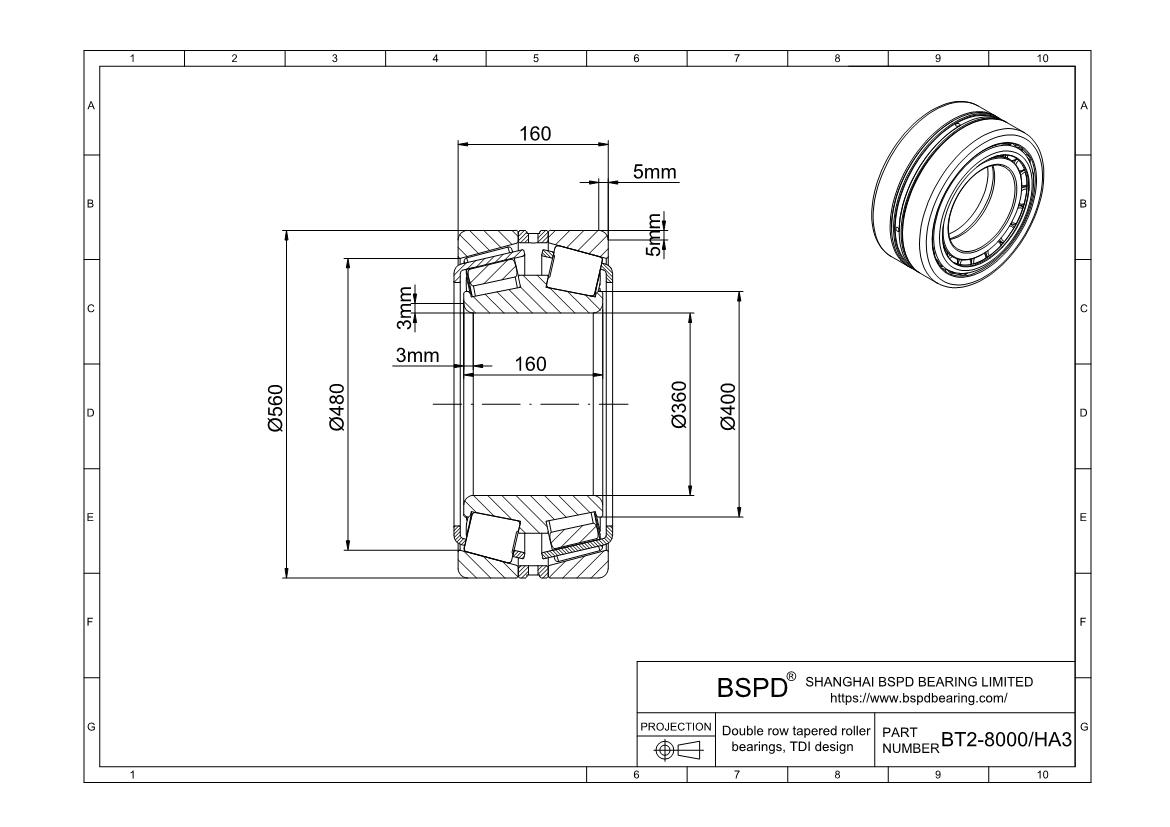

Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 560 mm； Width (Thickness): 160 mm;

BT2-8000/HA3
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBT2-8000/HA3
Bore diameter360 mm
Outside diameter560 mm
Total width160 mm
Shoulder diameter of inner ring400 mm
Width of outer ring160 mm
Chamfer minimum dimension of inner ring (r1,2)3 mm
Chamfer minimum dimension of outer ring (r3,4)5 mm
Basic dynamic load rating (Cr)2556 kn
Basic static load rating (Cor)4650 kN
Fatigue load limit (Pu)390 kN
Mass140 kg
Limiting value (e)0.72
Axial load factor (Y0)0.9
Axial load factor (Y1)0.94
Axial load factor (Y2)1.4
Comparative radial load rating (CF)630
Comparative axial load rating (CFA)450
Thrust factor (K)0.8
BT2-8000/HA3
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Tapered roller bearings BT2-8000/HA3 ? Double row tapered roller bearings& TDI design Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
