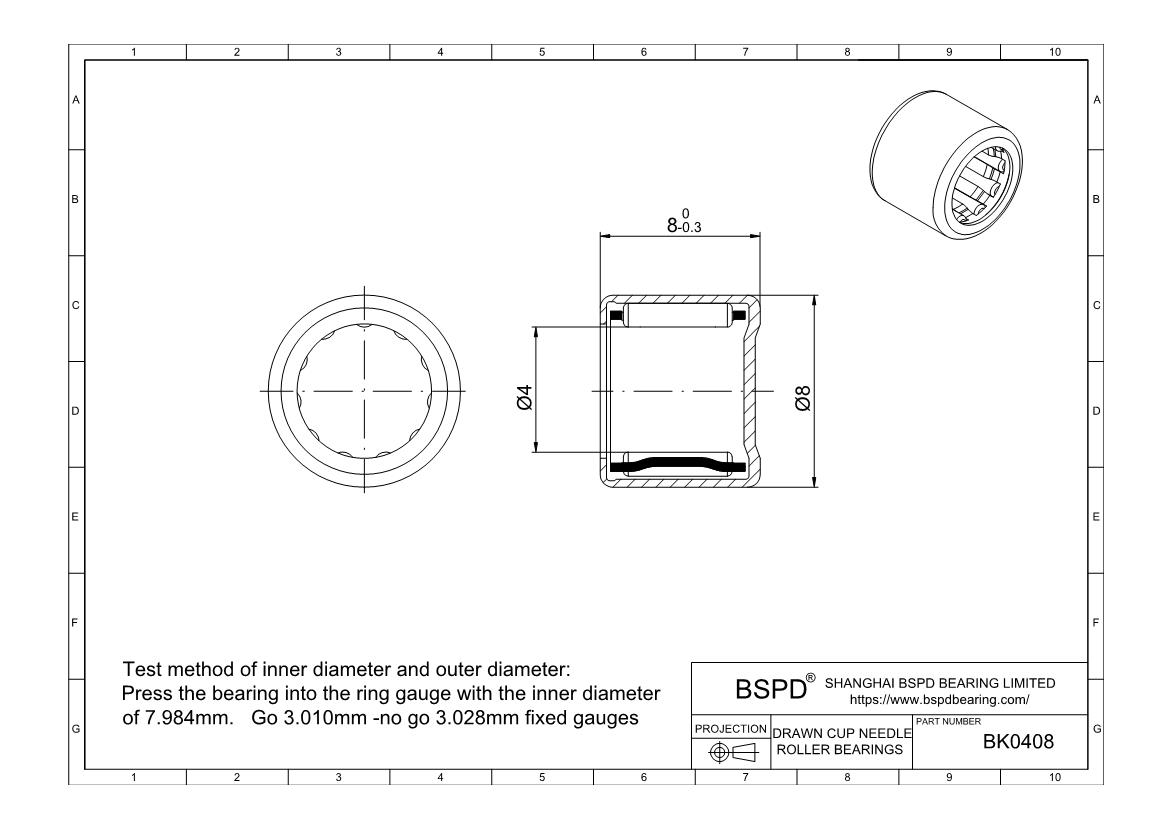

BK0408
Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 4 mm； Outer Diameter: 8 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Roller |
| Roller Bearing Type | Needle |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Closed |
| System of Measurement | Metric |
| Seal Type | Open |
| Part Number | BK0408 |
| For Shaft Diameter | 4mm |
| Bore Dia (d) | 4mm |
| Bore Dia Tolerance | +10-+28 ?m |
| For Housing ID | 8mm |
| Outer Dia (D) | 8mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 8mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 1780 N |
| Static Load Rating (Cor) (Newtons) | 1310 N |
| Fatigue limit load(Cur) (Newtons) | 144 N |
| Max Speed (Grease) (RPM) | 42500 |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 1.6 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings BK0408 ? Drawn Cup Needle Roller Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
