BCH2212-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 1.375"； Outer Diameter: 1.75"； Width (Thickness): 0.75";

BCH2212-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Closed
System of Measurement Inch
Seal Type Single seal
Part Number BCH2212-P
For Shaft Diameter 1.375"
Bore Dia (d) 1.375" | 34.925 mm

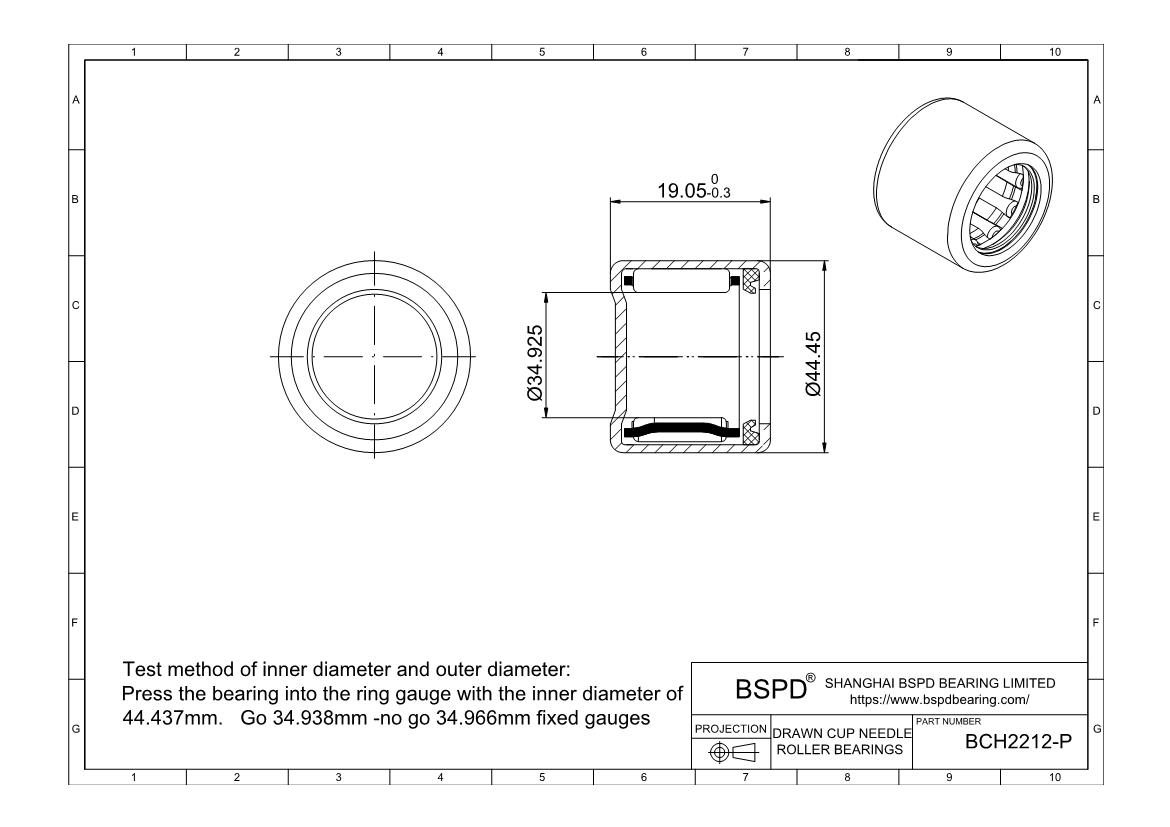

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 44.45mm
Outer Dia (D) 1.75" | 44.45mm
Outer Dia Tolerance Not Rated
Width (B) 0.75" | 19.05mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 25000 N
Static Load Rating (Cor) (Newtons) 40500 N
Max Speed (Grease) (RPM) 6000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 45
BCH2212-P
