BCH06604-P Drawn Cup Needle Roller Bearings
Dimensions: Bore (Inner) Diameter: 0.6667"； Outer Diameter: 0.9375"； Width (Thickness): 0.6882";

BCH06604-P
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
End Closed
System of Measurement Inch
Seal Type Single seal
Part Number BCH06604-P
For Shaft Diameter 2/3 "
Bore Dia (d) 2/3 " | 16.9333 mm

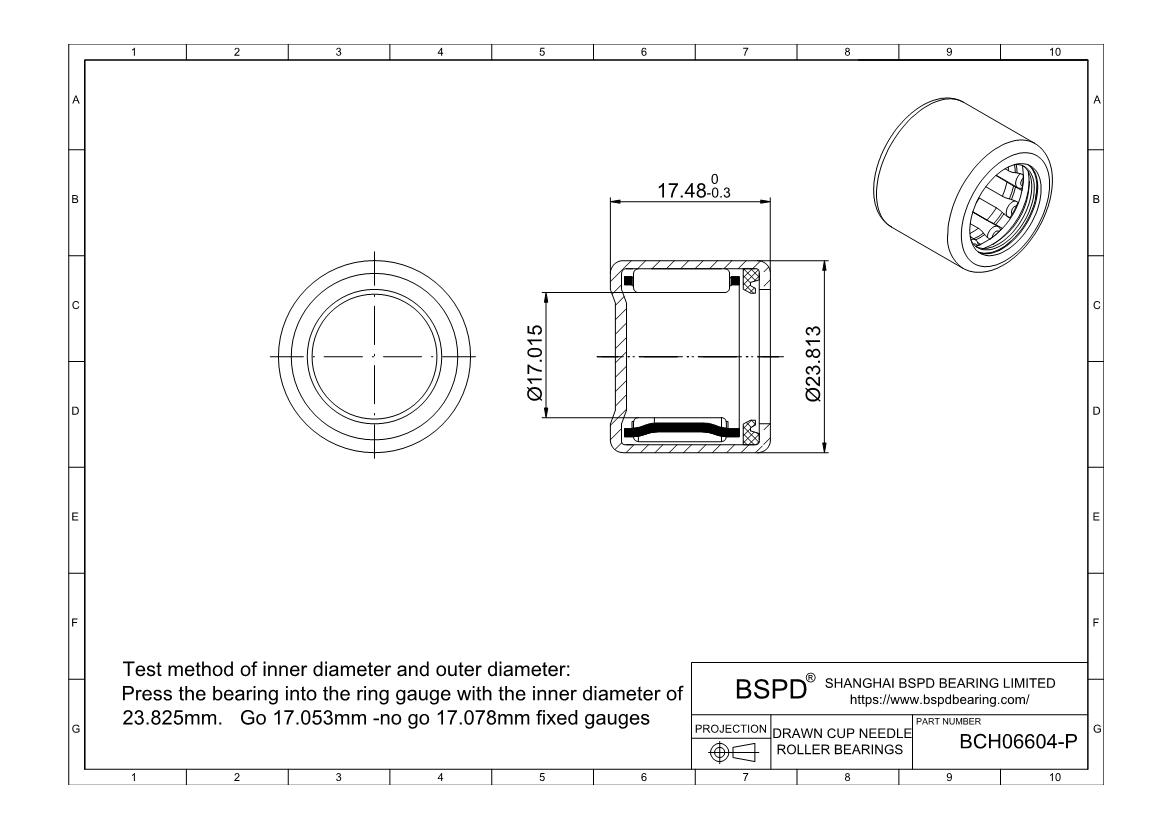

Bore Dia Tolerance Refer to note on the right drawing
For Housing ID 23.813mm
Outer Dia (D) 0.9375" | 23.813mm
Outer Dia Tolerance Not Rated
Width (B) 0.6882" | 17.48mm
Width Tolerance -0.01" to 0"
Ring Material steel
Ball Material steel
Cage Material steel
Dynamic Load Rating (Cr) (Newtons) 7400 N
Static Load Rating (Cor) (Newtons) 8000 N
Max Speed (Grease) (RPM) 11000
Lubrication Required
Lubricant Grease
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Weight (grams) 17
BCH06604-P
