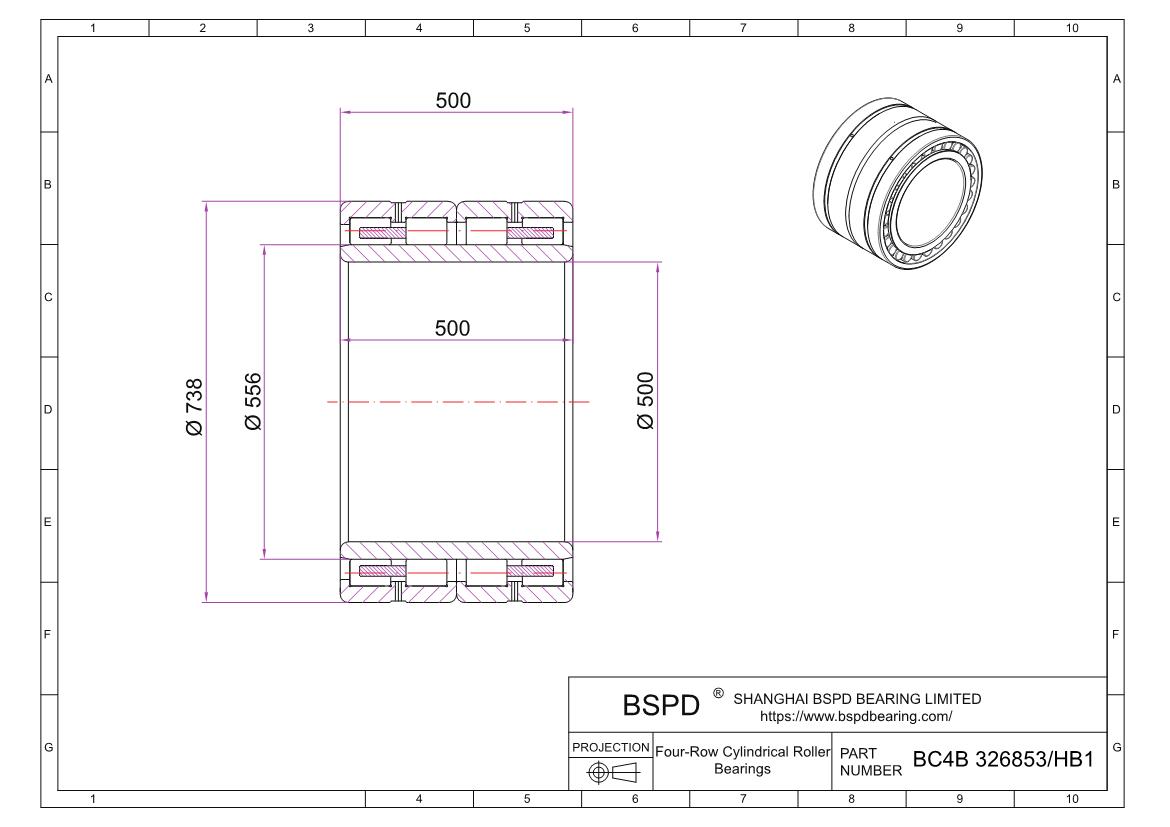

BC4B 326853/HB1 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 738 mm； Width (Thickness): ;

BC4B 326853/HB1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4B 326853/HB1
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia500 mm
Outer Dia738 mm
Total Bearing Width Over Inner Ring(S)(B)500 mm
Total Bearing Width Over Outer Ring(S)(C)500 mm
Dynamic Radial Load10800 kN
Static Radial Load23200 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)10.5 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)4 mm
Dynamic Load Rating10800 kN
Static Load Rating23200 kN
Fatigue Load Limit(Pu)1760 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)600
Mass Bearing735 kg
Raceway Diameter Inner Ring(F)556 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)12 mm
