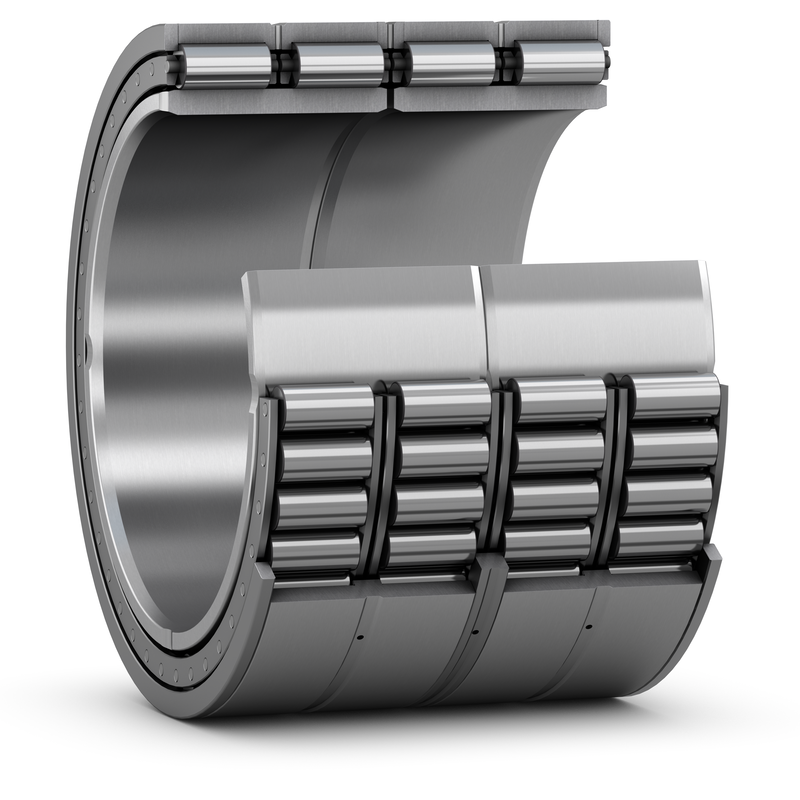

BC4B 319411 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 510 mm； Outer Diameter: 680 mm； Width (Thickness): ;

BC4B 319411
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4B 319411
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia510 mm
Outer Dia680 mm
Total Bearing Width Over Inner Ring(S)(B)500 mm
Total Bearing Width Over Outer Ring(S)(C)500 mm
Dynamic Radial Load9680 kN
Static Radial Load26000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)22 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating9680 kN
Static Load Rating26000 kN
Fatigue Load Limit(Pu)2080 kN
Static Load Rating 10000 kN greater
Mass Bearing522 kg
Raceway Diameter Inner Ring(F)560 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)12 mm
