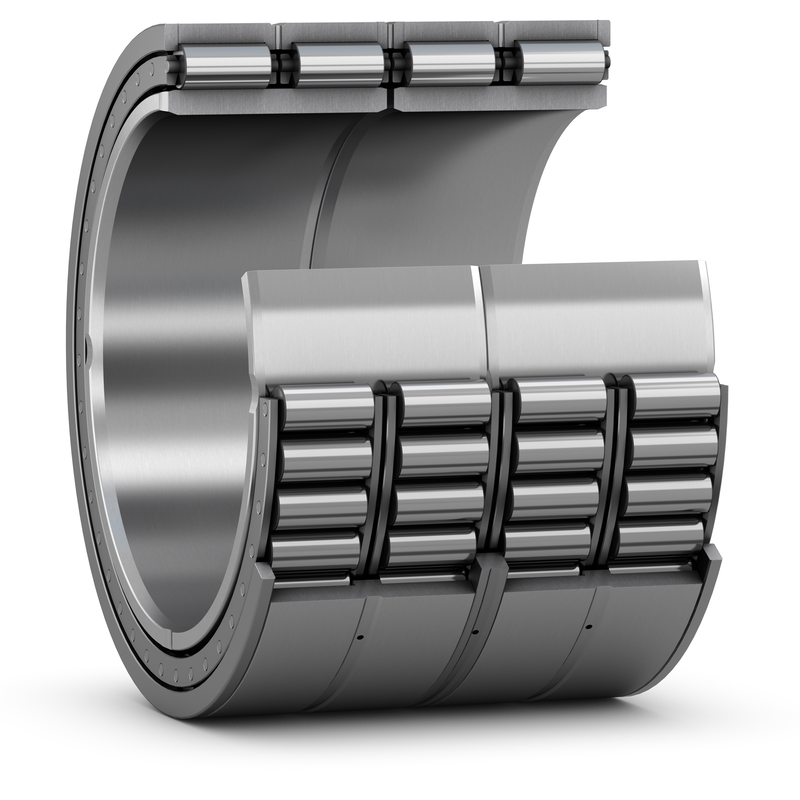

BC4B 316515 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 500 mm； Outer Diameter: 680 mm； Width (Thickness): ;

BC4B 316515
Product Attributes
Product NumberBC4B 316515
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia500 mm
Outer Dia680 mm
Total Bearing Width Over Inner Ring(S)(B)450 mm
Total Bearing Width Over Outer Ring(S)(C)450 mm
Dynamic Radial Load8250 kN
Static Radial Load22000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)6 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating8250 kN
Static Load Rating22000 kN
Fatigue Load Limit(Pu)1800 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)620
Mass Bearing500 kg
Raceway Diameter Inner Ring(F)550 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Outer Ring Shoulder Diameter(D1)621.6 mm
Diameter Lubrication Hole(Outer Ring)(K)12 mm
