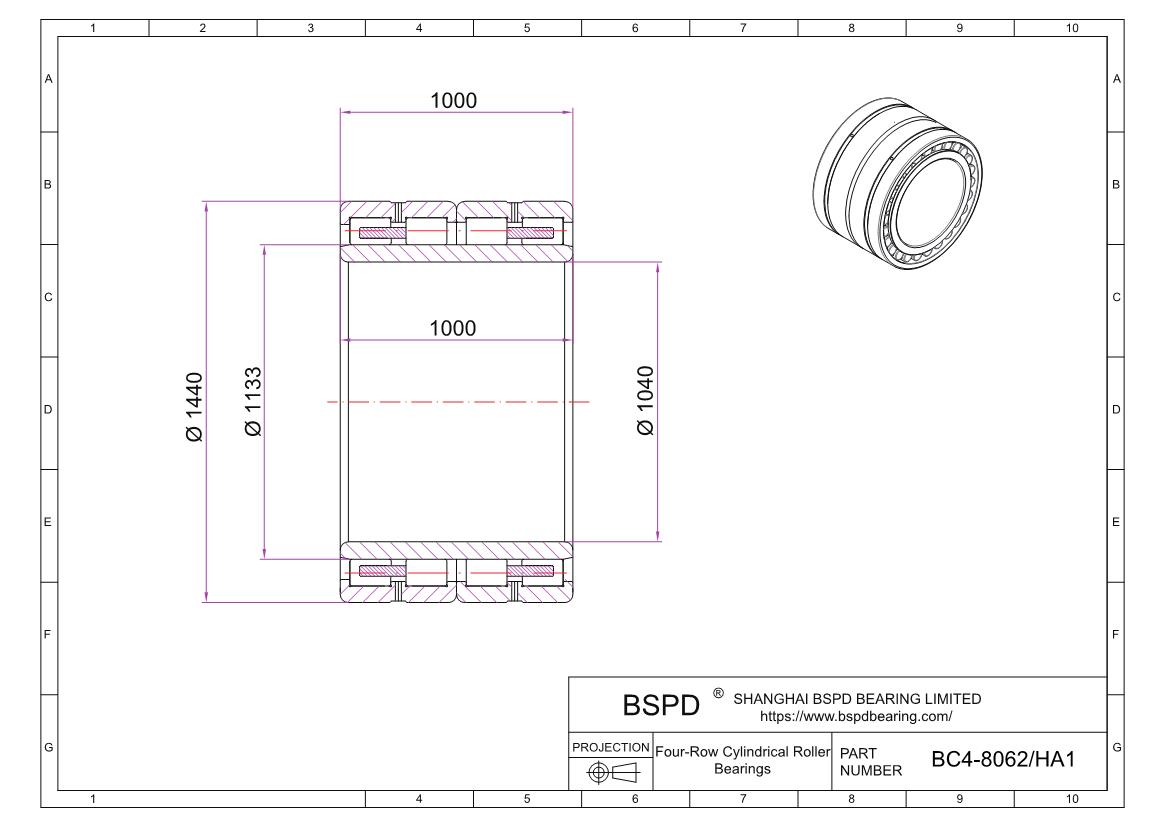

BC4-8062/HA1 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 1040 mm； Outer Diameter: 1440 mm； Width (Thickness): ;

BC4-8062/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-8062/HA1
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia1040 mm
Outer Dia1440 mm
Total Bearing Width Over Inner Ring(S)(B)1000 mm
Total Bearing Width Over Outer Ring(S)(C)1000 mm
Dynamic Radial Load38000 kN
Static Radial Load93000 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)12 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating38000 kN
Static Load Rating93000 kN
Fatigue Load Limit(Pu)5700 kN
Static Load Rating 10000 kN greater
Calculation Factor(Kr)600
Mass Bearing5100 kg
Raceway Diameter Inner Ring(F)1133 mm
Design Variant/FeatureBC4.14/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Diameter Lubrication Hole(Outer Ring)(K)12 mm
