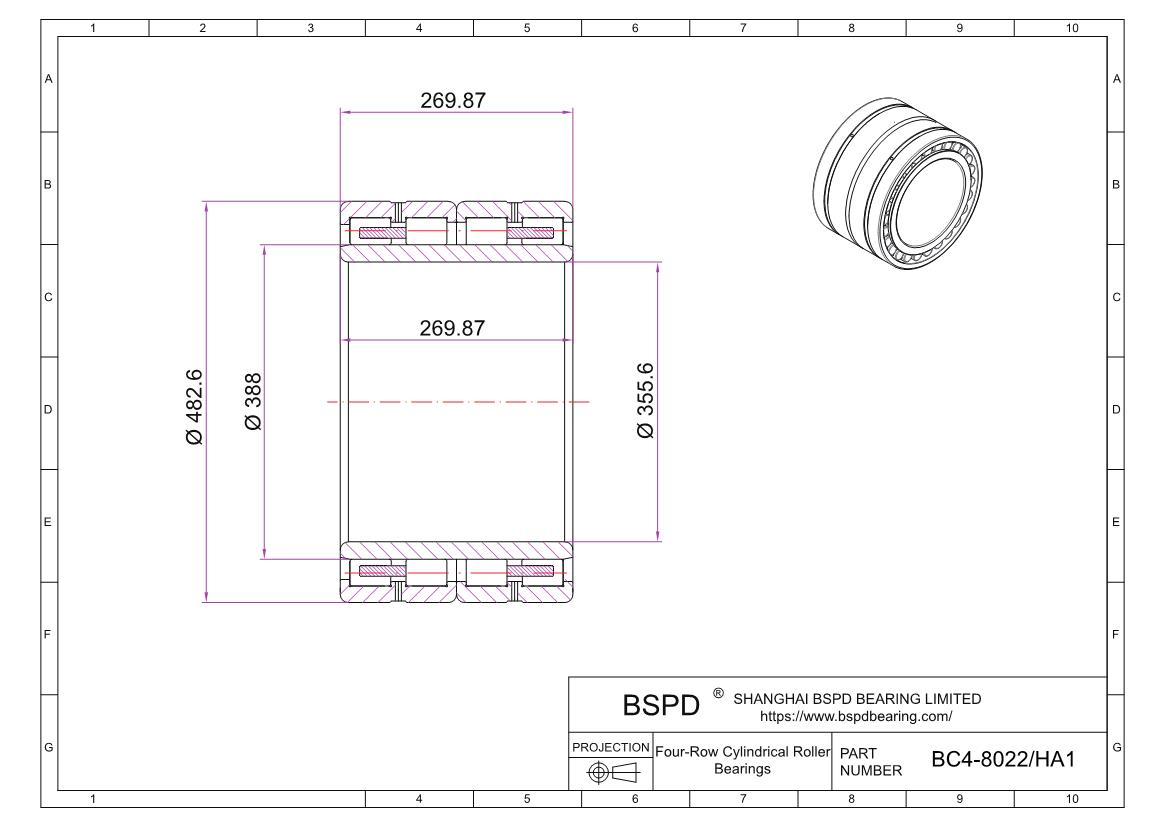

BC4-8022/HA1 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 355.6 mm； Outer Diameter: 482.6 mm； Width (Thickness): ;

BC4-8022/HA1
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-8022/HA1
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia355.6 mm
Outer Dia482.6 mm
Total Bearing Width Over Inner Ring(S)(B)269.87 mm
Total Bearing Width Over Outer Ring(S)(C)269.87 mm
Dynamic Radial Load2970 kN
Static Radial Load6400 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)10 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating2970 kN
Static Load Rating6400 kN
Fatigue Load Limit(Pu)585 kN
Static Load Rating 6000~7000 kN
Calculation Factor(Kr)360
Mass Bearing150 kg
Raceway Diameter Inner Ring(F)388 mm
Design Variant/FeatureBC4.10/W33WI
Width of Annular Groove(B)22.3 mm
Chamfer Angle Inner Ring(α)20 °
Outer Ring Shoulder Diameter(D1)440 mm
Diameter Lubrication Hole(Outer Ring)(K)12 mm
BC4-8022/HA1
