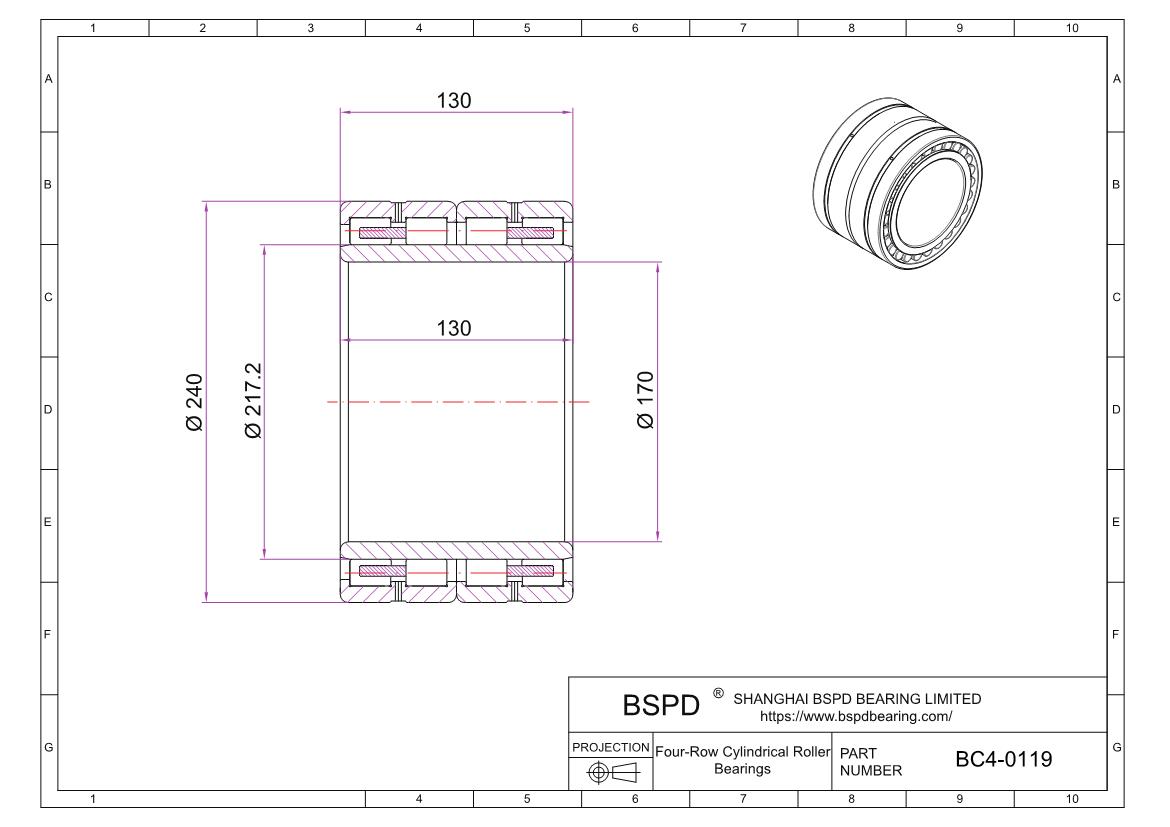

BC4-0119 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 240 mm； Width (Thickness): ;

BC4-0119
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-0119
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia170 mm
Outer Dia240 mm
Total Bearing Width Over Inner Ring(S)(B)130 mm
Total Bearing Width Over Outer Ring(S)(C)130 mm
Dynamic Radial Load1140 kN
Static Radial Load1830 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)2 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating1140 kN
Static Load Rating1830 kN
Fatigue Load Limit(Pu)196 kN
Static Load Rating 1000~2000 kN
Mass Bearing19 kg
Raceway Diameter Inner Ring(F)190 mm
Design Variant/FeatureBC4.1/WO
This Bearing Can ReplaceBC4B 635121
Outer Ring Shoulder Diameter(D1)217.2 mm
Permissible Axial Displacement(S)1.4 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0119
Separable Bearing RingLBC4-0119
BC4-0119
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
