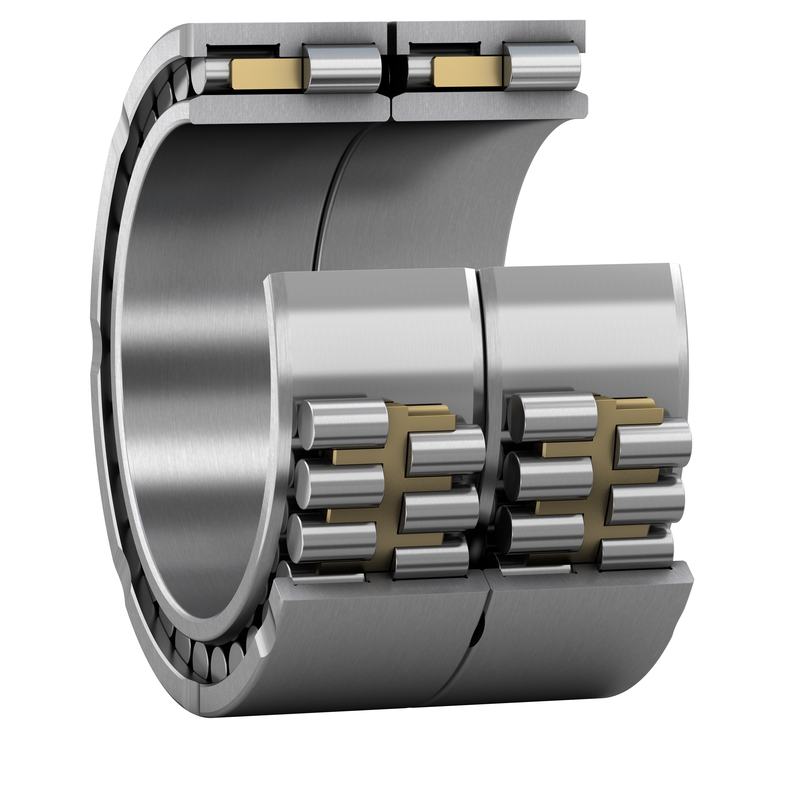

BC4-0118 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 230 mm； Width (Thickness): ;

BC4-0118
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-0118
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia170 mm
Outer Dia230 mm
Total Bearing Width Over Inner Ring(S)(B)160 mm
Total Bearing Width Over Outer Ring(S)(C)160 mm
Dynamic Radial Load1370 kN
Static Radial Load2360 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)2 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating1370 kN
Static Load Rating2360 kN
Fatigue Load Limit(Pu)255 kN
Static Load Rating 2000~3000 kN
Mass Bearing18.3 kg
Raceway Diameter Inner Ring(F)185.5 mm
Design Variant/FeatureBC4.7/W33
Width of Annular Groove(B)6 mm
This Bearing Can ReplaceBC2B 322340/HB1VJ202
Outer Ring Shoulder Diameter(D1)211.5 mm
Permissible Axial Displacement(S)2 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0118
Separable Bearing RingLBC4-0118
Diameter Lubrication Hole(Outer Ring)(K)3.5 mm
