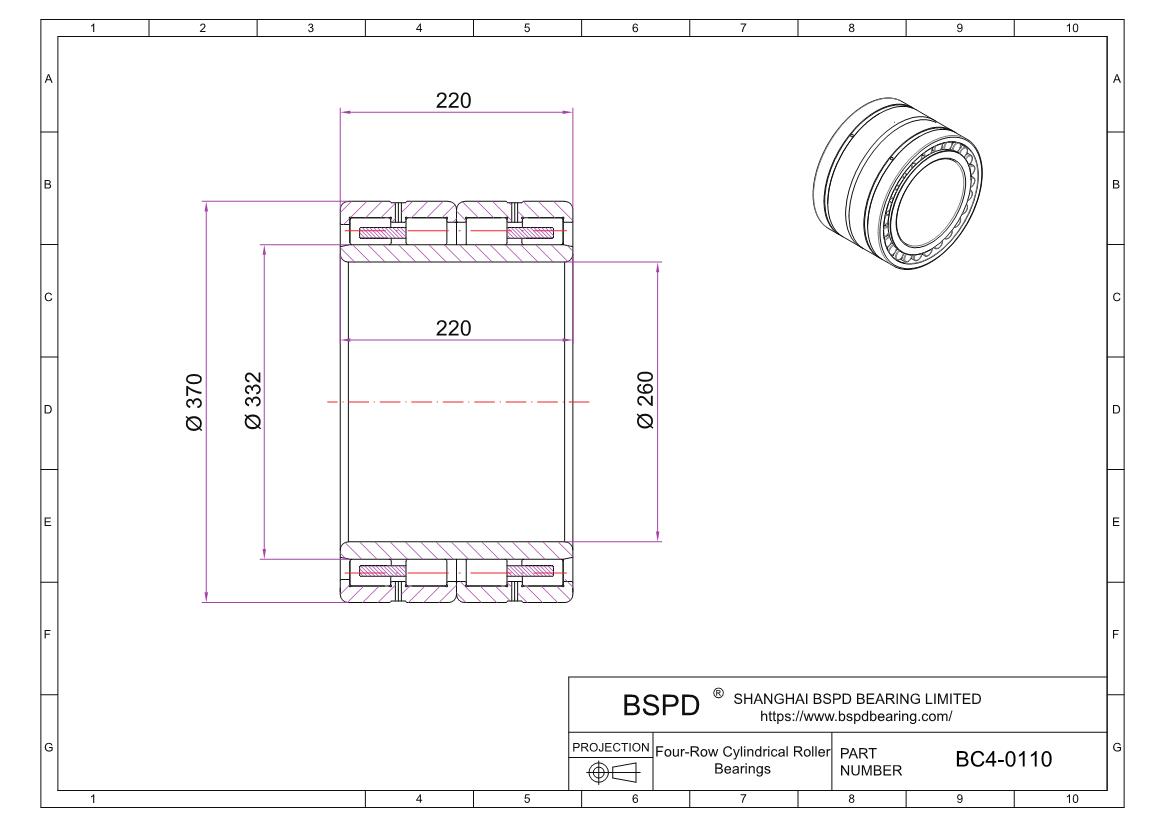

BC4-0110 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 370 mm； Width (Thickness): ;

BC4-0110
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-0110
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia260 mm
Outer Dia370 mm
Total Bearing Width Over Inner Ring(S)(B)220 mm
Total Bearing Width Over Outer Ring(S)(C)220 mm
Dynamic Radial Load2700 kN
Static Radial Load4650 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)3 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating2700 kN
Static Load Rating4650 kN
Fatigue Load Limit(Pu)465 kN
Static Load Rating 4000~5000 kN
Mass Bearing77.9 kg
Raceway Diameter Inner Ring(F)292 mm
Design Variant/FeatureBC4.1/WO
This Bearing Can Replace313823
Outer Ring Shoulder Diameter(D1)332 mm
Permissible Axial Displacement(S)3 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0110
Separable Bearing RingLBC4-0110
BC4-0110
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
