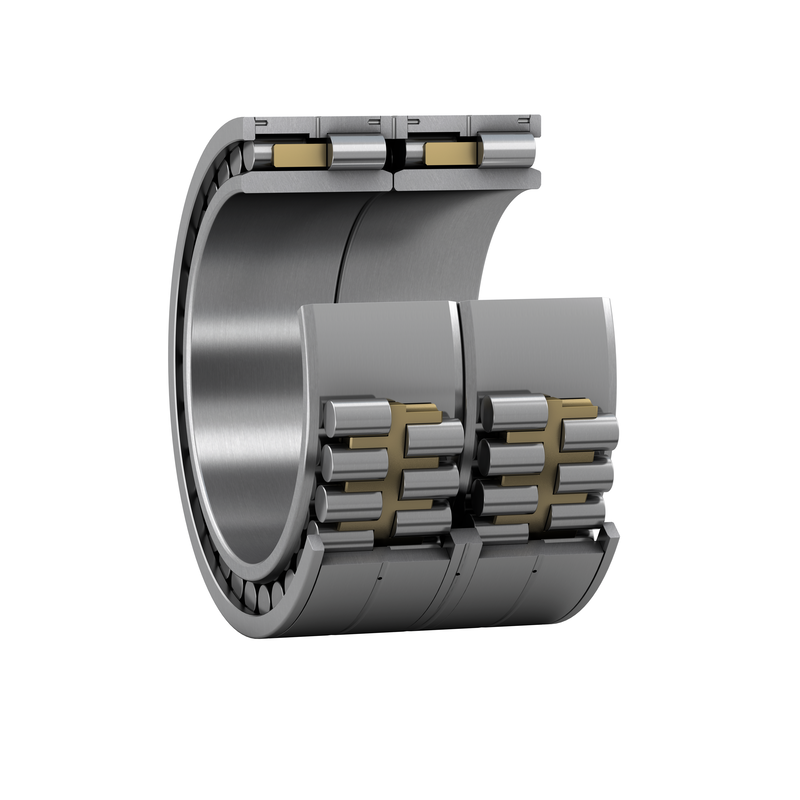

BC4-0100 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 280 mm； Outer Diameter: 390 mm； Width (Thickness): ;

BC4-0100
Product Attributes
Product NumberBC4-0100
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia280 mm
Outer Dia390 mm
Total Bearing Width Over Inner Ring(S)(B)275 mm
Total Bearing Width Over Outer Ring(S)(C)275 mm
Dynamic Radial Load3750 kN
Static Radial Load6950 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Chamfer Dimension On The Outer Ring(r3,4)(min#)1.1 mm
Corner Radius/Chamfer Inner Ring(r2)(min#)8.08 mm
Dynamic Load Rating3750 kN
Static Load Rating6950 kN
Fatigue Load Limit(Pu)670 kN
Static Load Rating 6000~7000 kN
Mass Bearing102 kg
Raceway Diameter Inner Ring(F)308 mm
Design Variant/FeatureBC4.8/W33
Width of Annular Groove(B)11.1 mm
Chamfer Angle Inner Ring(α)20 °
This Bearing Can Replace314719 C
Outer Ring Shoulder Diameter(D1)353 mm
Permissible Axial Displacement(S)3 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0100
Separable Bearing RingLBC4-0100
Diameter Lubrication Hole(Outer Ring)(K)6 mm
