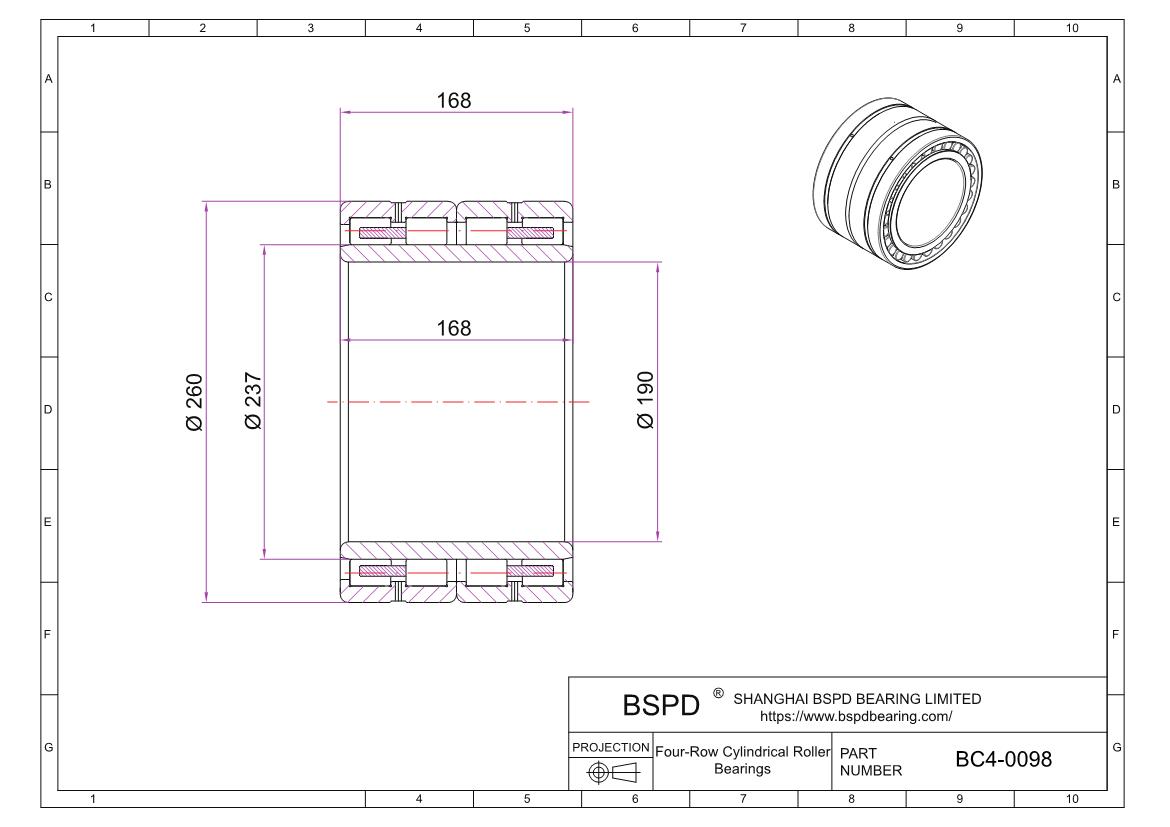

BC4-0098 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 190 mm； Outer Diameter: 260 mm； Width (Thickness): ;

BC4-0098
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC4-0098
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia190 mm
Outer Dia260 mm
Total Bearing Width Over Inner Ring(S)(B)168 mm
Total Bearing Width Over Outer Ring(S)(C)168 mm
Dynamic Radial Load1430 kN
Static Radial Load2600 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)2 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)2 mm
Dynamic Load Rating1430 kN
Static Load Rating2600 kN
Fatigue Load Limit(Pu)270 kN
Static Load Rating 2000~3000 kN
Mass Bearing26.7 kg
Raceway Diameter Inner Ring(F)212 mm
Design Variant/FeatureBC4.1/WO
This Bearing Can Replace313651
Outer Ring Shoulder Diameter(D1)237 mm
Permissible Axial Displacement(S)3 mm
Bearing Ring With Roller And Cage AssemblyRBC4-0098
Separable Bearing RingLBC4-0098
BC4-0098
