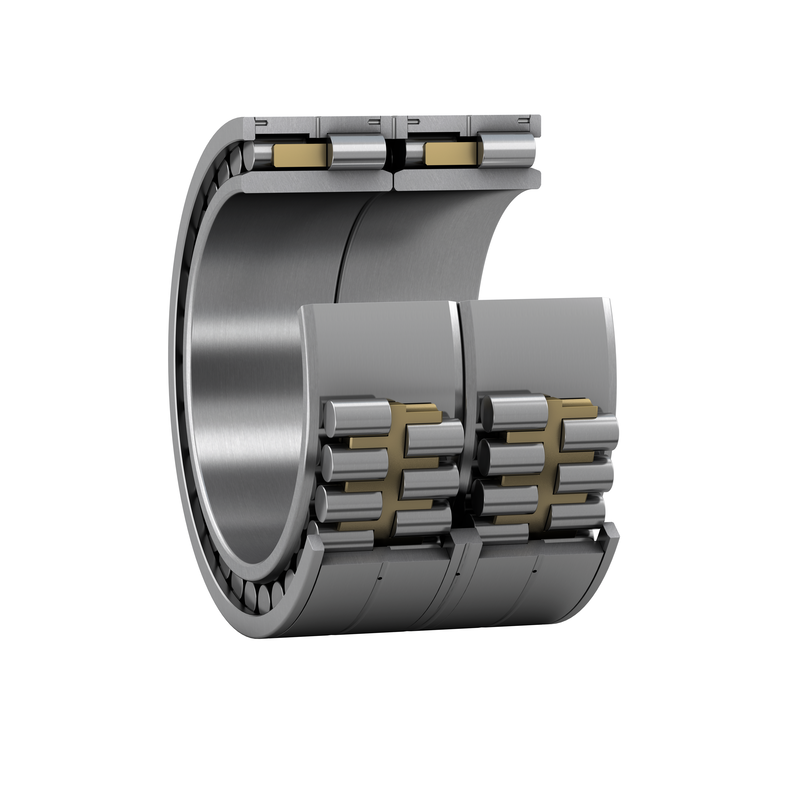

BC4-0094 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 420 mm； Width (Thickness): ;

Product Attributes

Product Number	BC4-0094
System of Measurement	Metric
Roller Bearing Type	Cylindrical
For Load Direction	Combined Radial and Thrust
Bore Dia	300 mm
Outer Dia	420 mm
Total Bearing Width Over Inner Ring(S)(B)	300 mm
Total Bearing Width Over Outer Ring(S)(C)	300 mm
Dynamic Radial Load	4400 kN
Static Radial Load	8300 kN
Lubrication	Grease, Oil
Temperature Range	-30° to 110 °C
RoHS	Compliant
REACH	Compliant
Chamfer Dimension On The Outer Ring(r3,4)(min#)	1.5 mm
Corner Radius/Chamfer Inner Ring(r2)(min#)	6.4 mm
Dynamic Load Rating	4400 kN
Static Load Rating	8300 kN
Fatigue Load Limit(Pu)	800 kN
Static Load Rating	8000~9000 kN
Mass Bearing	130 kg
Raceway Diameter Inner Ring(F)	332 mm
Design Variant/Feature	BC4.8/W33WO
Width of Annular Groove(B)	11.1 mm
Chamfer Angle Inner Ring(α)	20 °
This Bearing Can Replace	314484 D
Outer Ring Shoulder Diameter(D1)	378.2 mm
Permissible Axial Displacement(S)	3 mm
Bearing Ring With Roller And Cage Assembly	RBC4-0094
Separable Bearing Ring	LBC4-0094
Diameter Lubrication Hole(Outer Ring)(K)	6 mm
