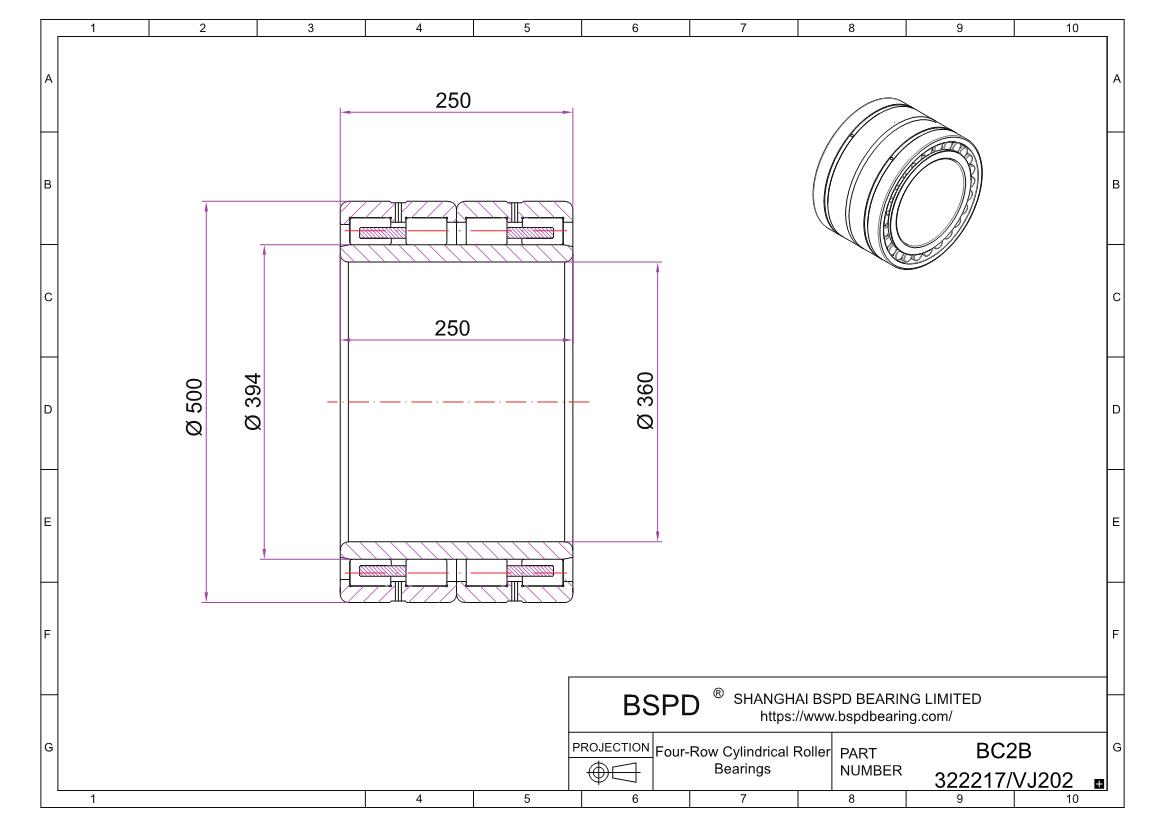

BC2B 322217/VJ202 Four-Row Cylindrical Roller Bearings
Dimensions: Bore (Inner) Diameter: 360 mm； Outer Diameter: 500 mm； Width (Thickness): ;

BC2B 322217/VJ202
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberBC2B 322217/VJ202
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined Radial and Thrust
Bore Dia360 mm
Outer Dia500 mm
Total Bearing Width Over Inner Ring(S)(B)250 mm
Total Bearing Width Over Outer Ring(S)(C)250 mm
Dynamic Radial Load4400 kN
Static Radial Load8500 kN
LubricationGrease, Oil
Temperature Range-30° to 110 °C
RoHSCompliant
REACHCompliant
Corner Radius/Chamfer Inner Ring(r1,2)(min#)3 mm
Chamfer Dimension On The Outer Ring(r3,4)(min#)3 mm
Dynamic Load Rating4400 kN
Static Load Rating8500 kN
Fatigue Load Limit(Pu)780 kN
Static Load Rating 8000~9000 kN
Mass Bearing160 kg
Raceway Diameter Inner Ring(F)394 mm
Design Variant/FeatureBC4.13/WO
Outer Ring Shoulder Diameter(D1)463 mm
BC2B 322217/VJ202
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
