AXK1730
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 17 mm; Outer Diameter: 30 mm; Width (Thickness): 2 mm;
![AXK1730](https://www.bspdbearing.com/wp-content/uploads/2021/05/AXK-150x150-1.jpg)
REQUEST FOR QUOTE
Product Attributes
Bearing Type | Needle |
Seal Type | Open |
For Load Direction | Thrust |
System of Measurement | Metric |
Part Number | AXK1730 |
ID | 17mm |
ID Tolerance | 0.032mm to 0.142mm |
OD | 30mm |
OD Tolerance | -0.320mm to -0.110mm |
Thickness | 2mm |
Needle Material | Steel |
Cage Material | Steel |
Basic dynamic load rating, axial (Ca) (Newtons) | 11900 |
Basic static load rating, axial (C0a) (Newtons) | 39500 |
Fatigue limit load (Cur) (Newtons) | 4000 |
Max Speed (RPM) | 12100 |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
Radial Clearance | 0.0000 to 0.0005" |
RoHS | Compliant |
Allocated axial bearing washer | as1730-2/">AS1730 |

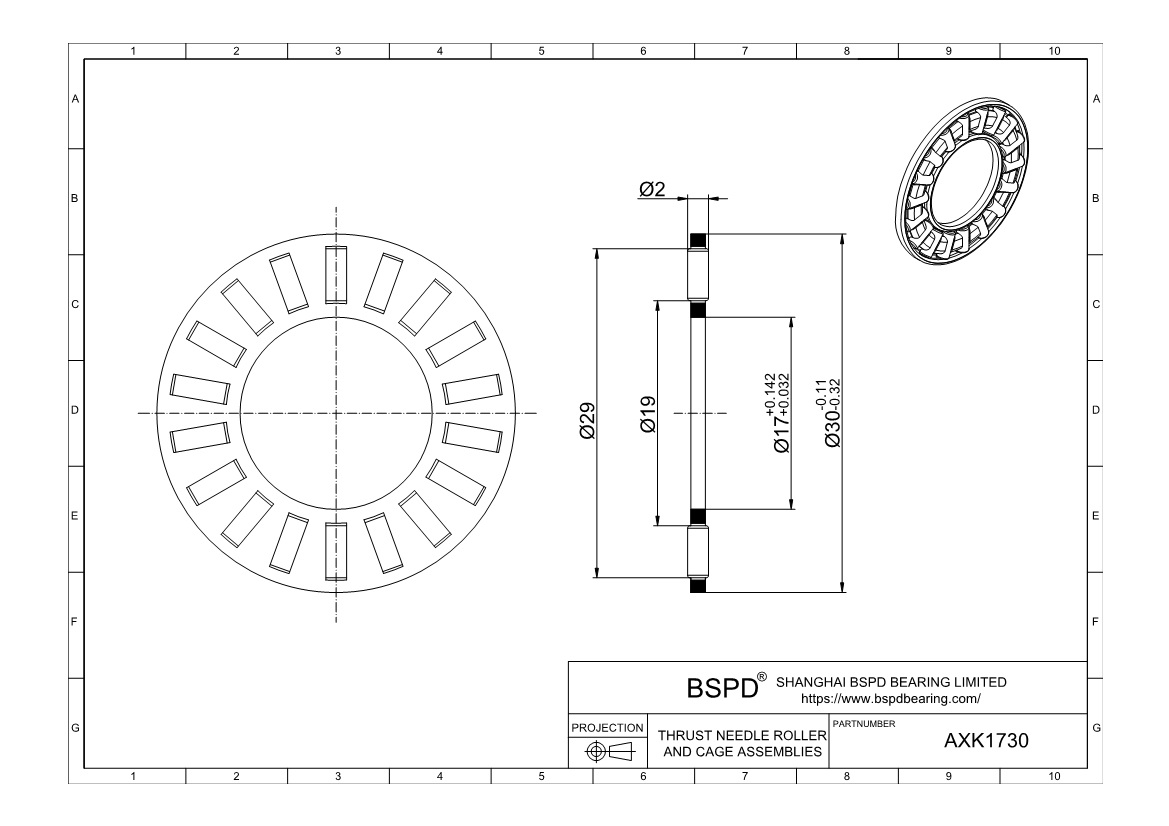

![AXK1730](/wp-content/uploads/pdf/AXK1730/1.jpg)
Print PDF
Request a 3D CAD Model
