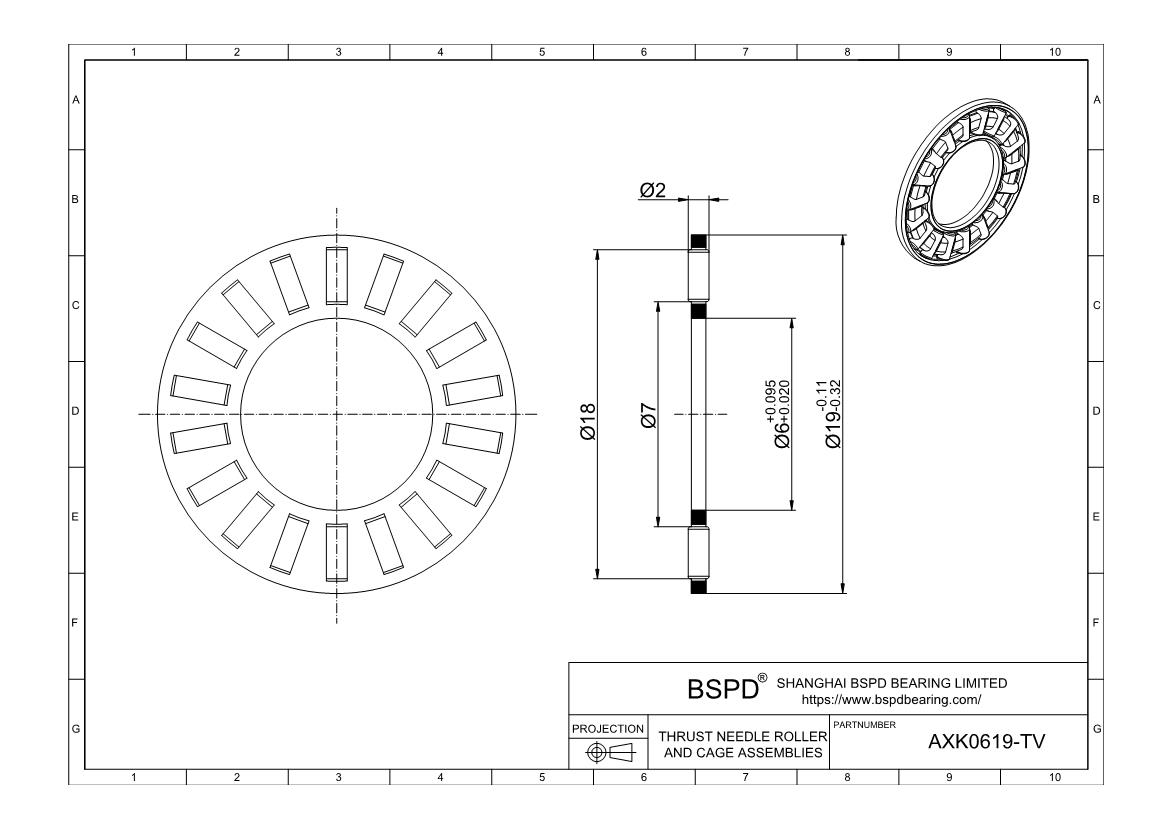

AXK0619-TV
Needle Roller Thrust Bearings
Dimensions: Bore (Inner) Diameter: 6 mm； Outer Diameter: 19 mm； Width (Thickness): 2 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Needle |
| Seal Type | Open |
| For Load Direction | Thrust |
| System of Measurement | Metric |
| Part Number | AXK0619-TV |
| ID | 6mm |
| ID Tolerance | 0.02mm to 0.095mm |
| OD | 19mm |
| OD Tolerance | -0.320mm to -0.110mm |
| Thickness | 2mm |
| Needle Material | Steel |
| Cage Material | PA66 |
| Basic dynamic load rating, axial (Ca) (Newtons) | 6800 |
| Basic static load rating, axial (C0a) (Newtons) | 15500 |
| Fatigue limit load (Cur) (Newtons) | 1610 |
| Max Speed (RPM) | 18900 |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 to 0.0005" |
| RoHS | Compliant |
| Allocated axial bearing washer | AS0619 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Needle Roller Bearings AXK0619-TV ? Needle Roller Thrust Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
