A8-39E12
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 34.88"； Outer Diameter: 42.598"； Width (Thickness): 3.23";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-39E12 |
| Raceway Moment (ft-lbs) | 339000 |
| Compressive Thrust(lbs) | 461000 |
| Weight(lbs) | 310 |

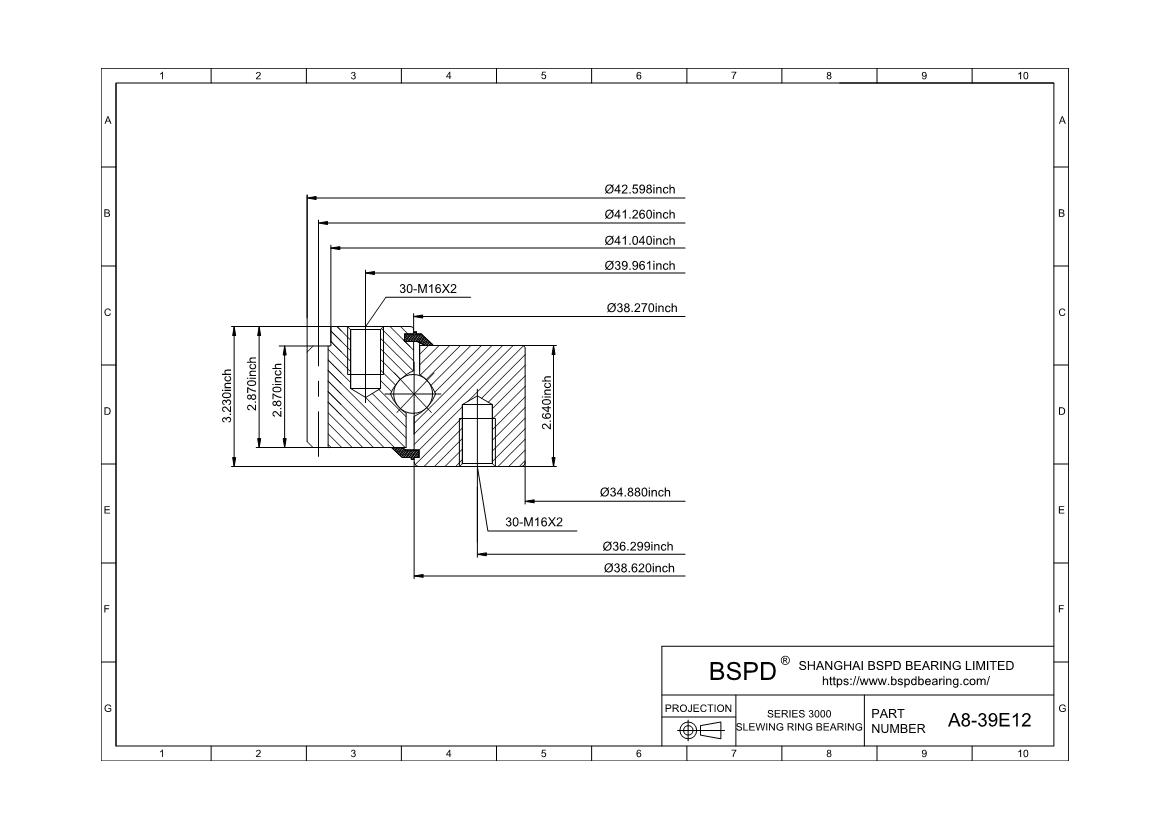

| Outline Dimensions(inches) | |
| OD | 42.598 |
| ID | 34.88 |
| OE | 41.04 |
| OI | 38.27 |
| IO | 38.62 |
| HT | 3.23 |
| OH | 2.87 |
| IH | 2.64 |
| Mounting Holes | |
| OBC | 39.961 |
| OU | M16x2 |
| No of OBC Holes | 30 |
| IBC | 36.299 |
| IU | M16x2 |
| No of IBC Holes | 30 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 41.26 |
| DP | 3.175 |
| NO of Teeth | 131 |
| Tooth From | 20d,8 Module |
| F | 2.87 |
| Tangential Gear Capacity(lbs) | 14400 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-39E12 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
