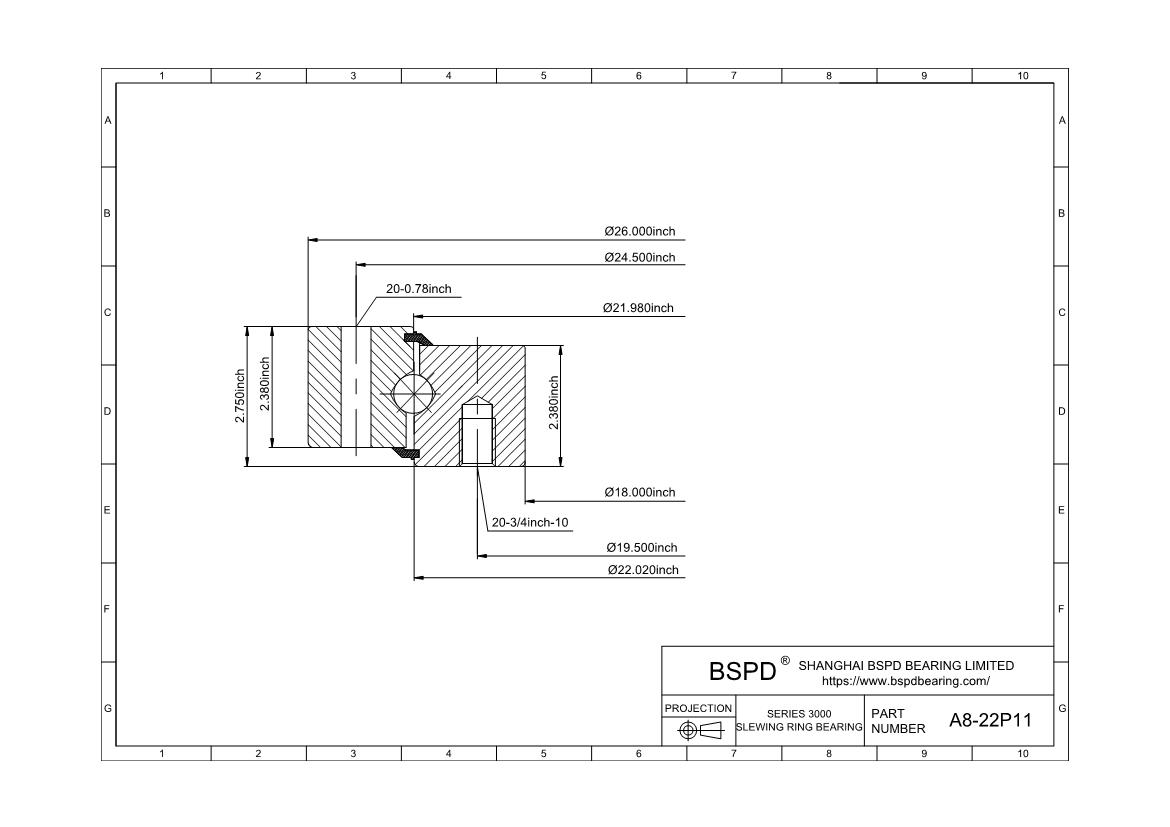

A8-22P11
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 18.0"； Outer Diameter: 26.0"； Width (Thickness): 2.75";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-22P11 |
| Raceway Moment (ft-lbs) | 130000 |
| Compressive Thrust(lbs) | 309000 |
| Weight(lbs) | 170 |
| Outline Dimensions(inches) | |
| OD | 26 |
| ID | 18 |
| OE | - |
| OI | 21.98 |
| IO | 22.02 |
| HT | 2.75 |
| OH | 2.38 |
| IH | 2.38 |
| Mounting Holes | |
| OBC | 24.5 |
| OU | 0.78 |
| No of OBC Holes | 20 |
| IBC | 19.5 |
| IU | 3/4-10 |
| No of IBC Holes | 20 |
| Hole Figure Style | 3 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-22P11 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
