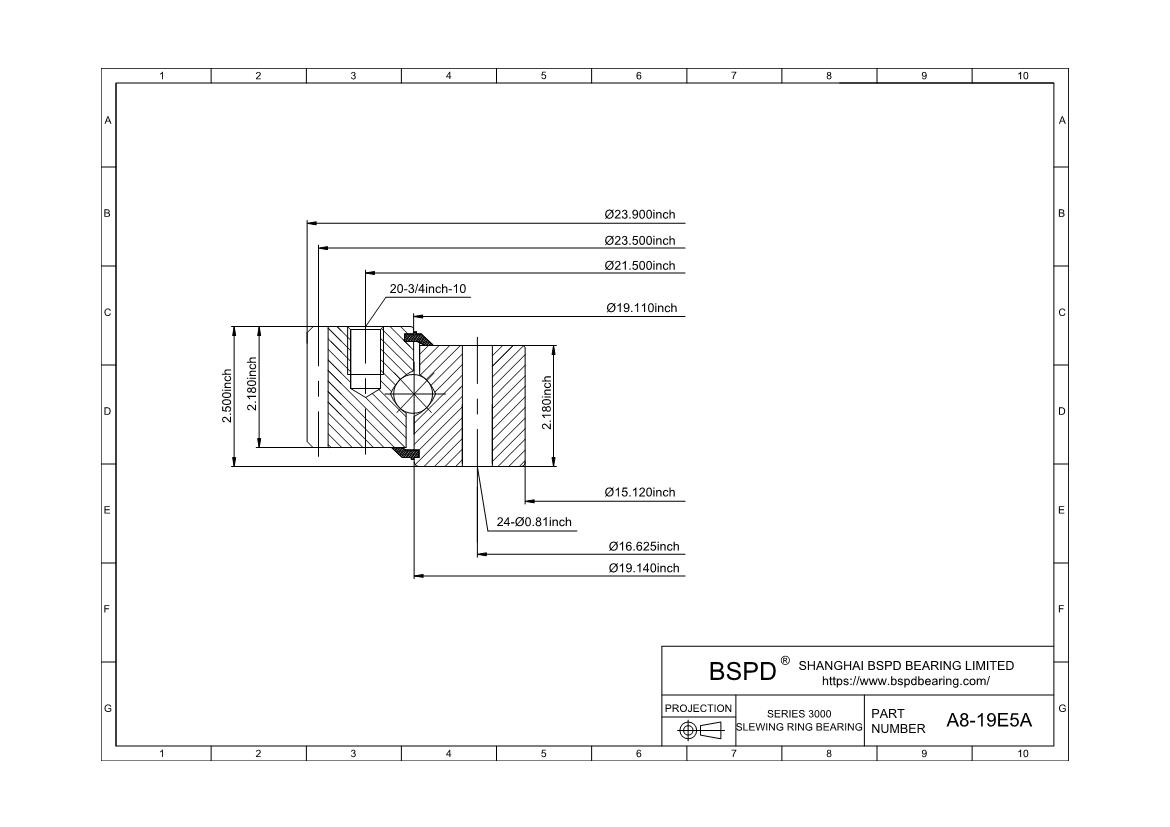

A8-19E5A
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 15.12"； Outer Diameter: 23.9"； Width (Thickness): 2.5";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-19E5A |
| Raceway Moment (ft-lbs) | 135000 |
| Compressive Thrust(lbs) | 369000 |
| Weight(lbs) | 140 |
| Outline Dimensions(inches) | |
| OD | 23.9 |
| ID | 15.12 |
| OE | - |
| OI | 19.11 |
| IO | 19.14 |
| HT | 2.5 |
| OH | 2.18 |
| IH | 2.18 |
| Mounting Holes | |
| OBC | 21.5 |
| OU | 3/4-10 |
| No of OBC Holes | 20 |
| IBC | 16.625 |
| IU | 0.81 |
| No of IBC Holes | 24-1 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | 23.5 |
| DP | 4 |
| NO of Teeth | 94 |
| Tooth From | 20d,Stub |
| F | 2.18 |
| Tangential Gear Capacity(lbs) | 10200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-19E5A ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
