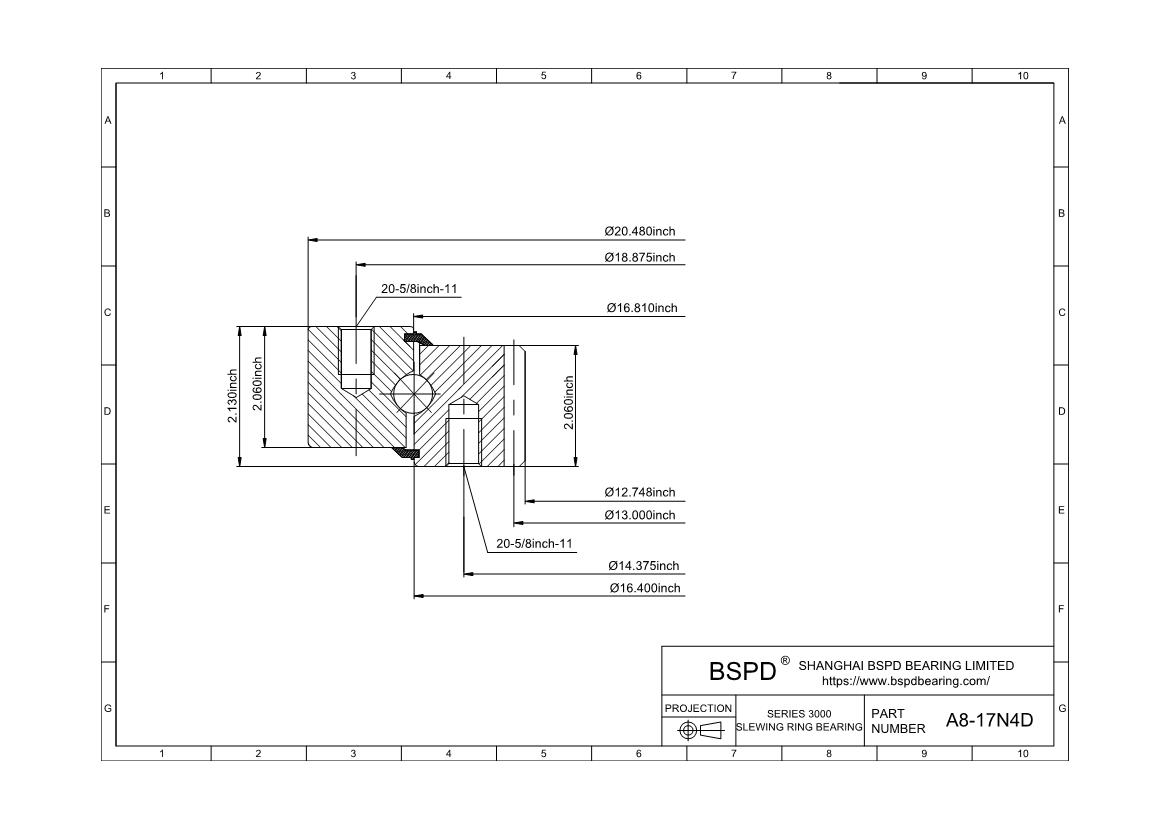

A8-17N4D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 12.748"； Outer Diameter: 20.48"； Width (Thickness): 2.13";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A8-17N4D |
| Raceway Moment (ft-lbs) | 85000 |
| Compressive Thrust(lbs) | 269000 |
| Weight(lbs) | 101 |
| Outline Dimensions(inches) | |
| OD | 20.48 |
| ID | 12.748 |
| OE | - |
| OI | 16.81 |
| IO | 16.4 |
| HT | 2.13 |
| OH | 2.06 |
| IH | 2.06 |
| Mounting Holes | |
| OBC | 18.875 |
| OU | 5/8-11 |
| No of OBC Holes | 20 |
| IBC | 14.375 |
| IU | 5/8-11 |
| No of IBC Holes | 20 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 13 |
| DP | 5 |
| NO of Teeth | 65 |
| Tooth From | 20d, 5/7 Fellows |
| F | 2.06 |
| Tangential Gear Capacity(lbs) | 9200 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A8-17N4D ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
