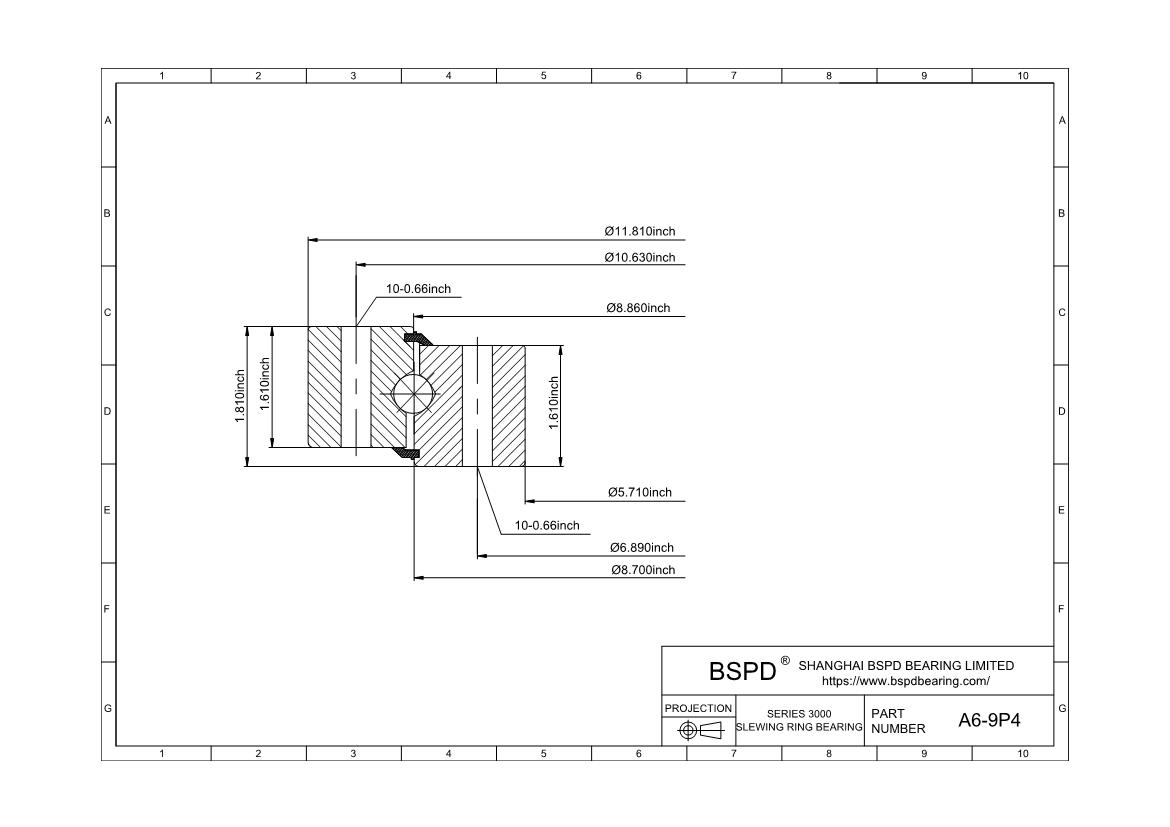

A6-9P4
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 5.71"； Outer Diameter: 11.81"； Width (Thickness): 1.81";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A6-9P4 |
| Raceway Moment (ft-lbs) | 15300 |
| Compressive Thrust(lbs) | 91200 |
| Weight(lbs) | 32 |
| Outline Dimensions(inches) | |
| OD | 11.81 |
| ID | 5.71 |
| OE | - |
| OI | 8.86 |
| IO | 8.7 |
| HT | 1.81 |
| OH | 1.61 |
| IH | 1.61 |
| Mounting Holes | |
| OBC | 10.63 |
| OU | 0.66 |
| No of OBC Holes | 10 |
| IBC | 6.89 |
| IU | 0.66 |
| No of IBC Holes | 10 |
| Hole Figure Style | 1 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
