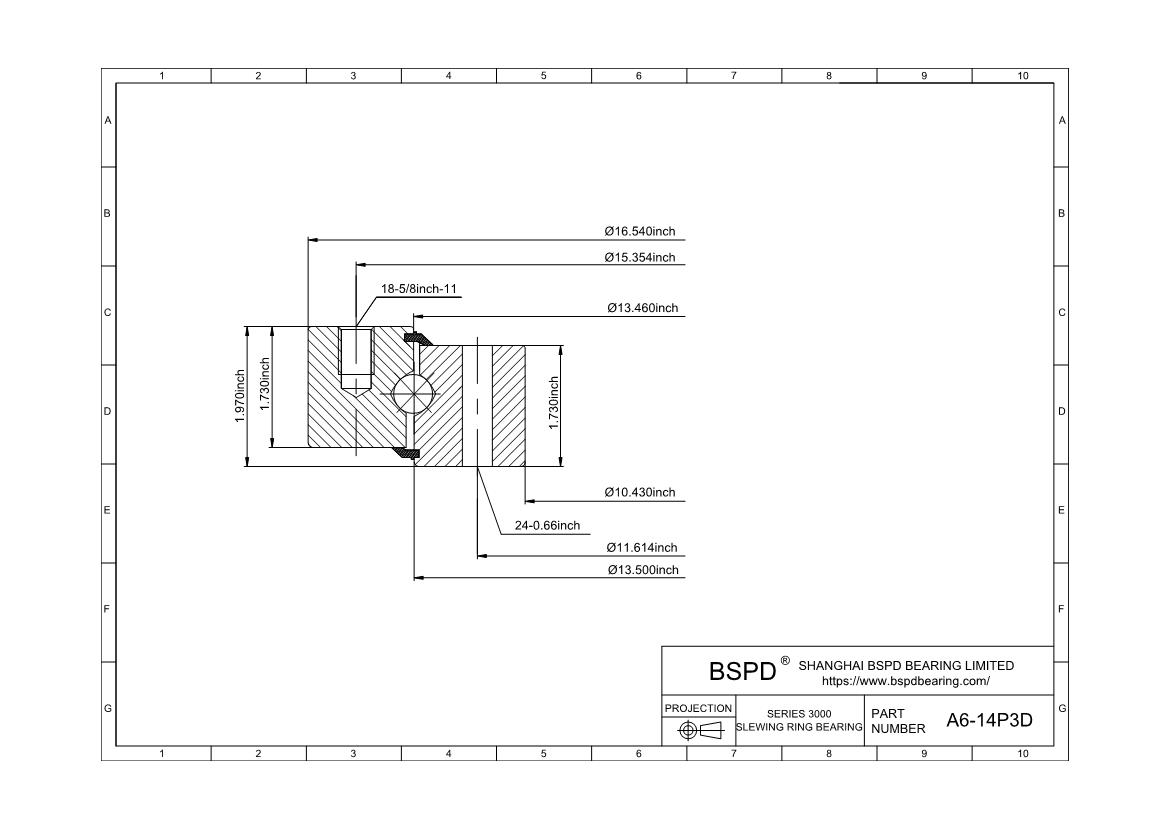

A6-14P3D
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 10.43"； Outer Diameter: 16.54"； Width (Thickness): 1.97";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A6-14P3D |
| Raceway Moment (ft-lbs) | 20600 |
| Compressive Thrust(lbs) | 80000 |
| Weight(lbs) | 56 |
| Outline Dimensions(inches) | |
| OD | 16.54 |
| ID | 10.43 |
| OE | - |
| OI | 13.46 |
| IO | 13.5 |
| HT | 1.97 |
| OH | 1.73 |
| IH | 1.73 |
| Mounting Holes | |
| OBC | 15.354 |
| OU | 5/8-11 |
| No of OBC Holes | 18 |
| IBC | 11.614 |
| IU | 0.66 |
| No of IBC Holes | 24-1 |
| Hole Figure Style | 4 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A6-14P3D ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
