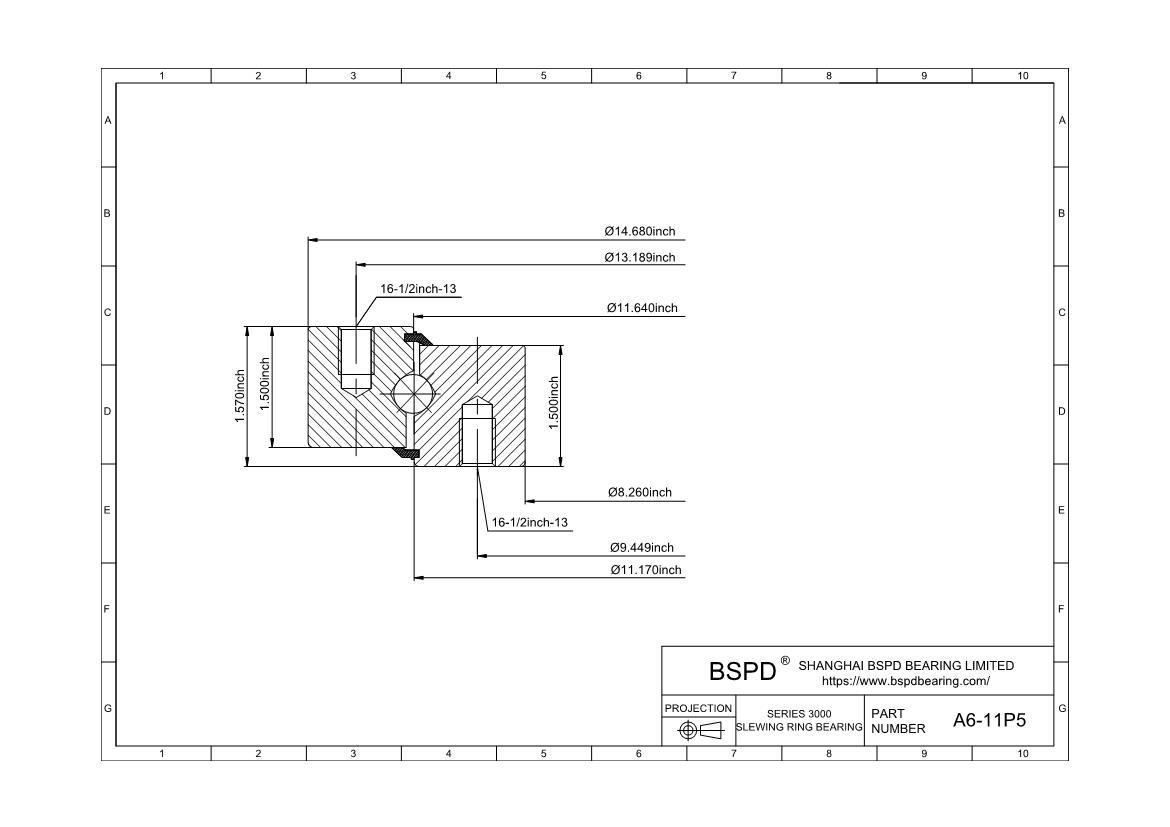

A6-11P5
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 8.26"； Outer Diameter: 14.68"； Width (Thickness): 1.57";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A6-11P5 |
| Raceway Moment (ft-lbs) | 37500 |
| Compressive Thrust(lbs) | 173000 |
| Weight(lbs) | 43 |
| Outline Dimensions(inches) | |
| OD | 14.68 |
| ID | 8.26 |
| OE | - |
| OI | 11.64 |
| IO | 11.17 |
| HT | 1.57 |
| OH | 1.5 |
| IH | 1.5 |
| Mounting Holes | |
| OBC | 13.189 |
| OU | 1/2-13 |
| No of OBC Holes | 16 |
| IBC | 9.449 |
| IU | 1/2-13 |
| No of IBC Holes | 20-1 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | - |
| DP | - |
| NO of Teeth | - |
| Tooth From | - |
| F | - |
| Tangential Gear Capacity(lbs) | - |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A6-11P5 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
