A22-129N1
Inch Size Slewing Rings
Dimensions: Bore (Inner) Diameter: 116.933"； Outer Diameter: 137.75"； Width (Thickness): 6.25";
REQUEST FOR QUOTE
Product Attributes
| Specifications | |
| Part Number | A22-129N1 |
| Raceway Moment (ft-lbs) | 16000000 |
| Compressive Thrust(lbs) | 6510000 |
| Weight(lbs) | 5610 |

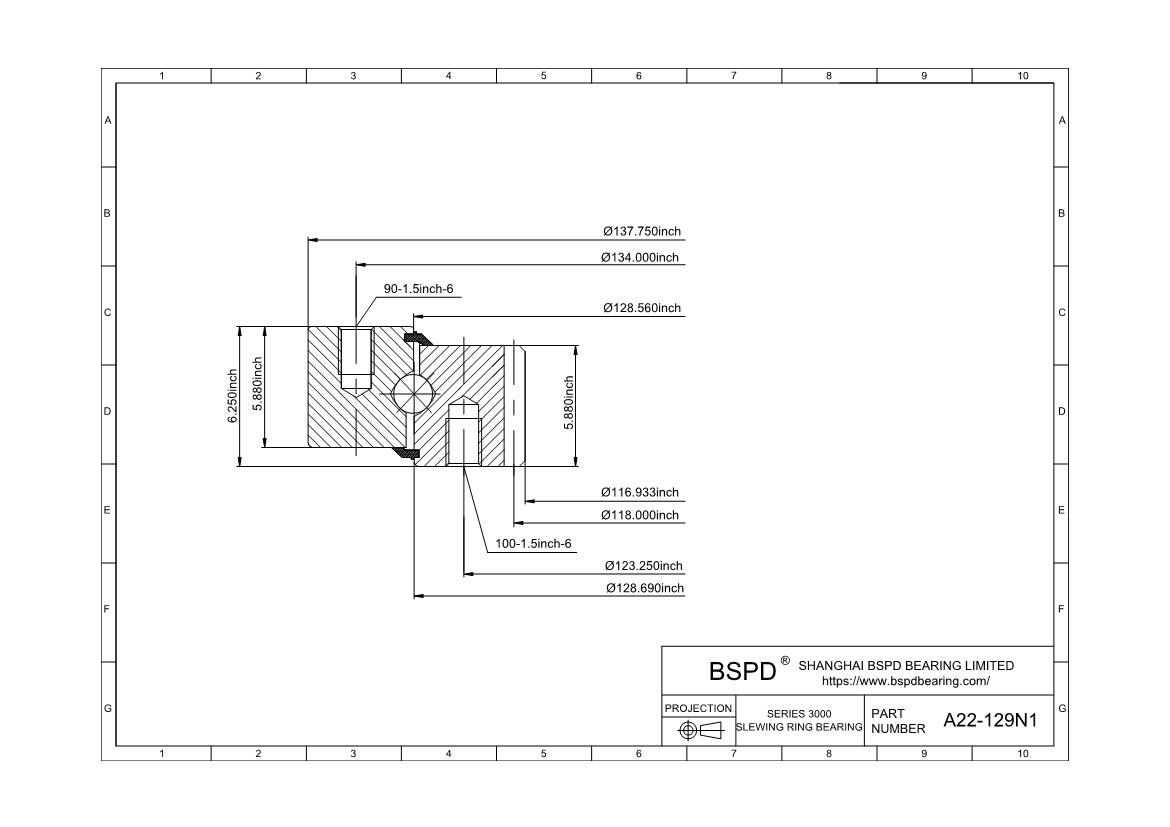

| Outline Dimensions(inches) | |
| OD | 137.75 |
| ID | 116.933 |
| OE | - |
| OI | 128.56 |
| IO | 128.69 |
| HT | 6.25 |
| OH | 5.88 |
| IH | 5.88 |
| Mounting Holes | |
| OBC | 134 |
| OU | 1.5-6 |
| No of OBC Holes | 90-1 |
| IBC | 123.25 |
| IU | 1.5-6 |
| No of IBC Holes | 100 |
| Hole Figure Style | 2 |
| Gear Data | |
| PD | 118 |
| DP | 1.5 |
| NO of Teeth | 177 |
| Tooth From | 20d, Stub |
| F | 5.88 |
| Tangential Gear Capacity(lbs) | 88000 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Slewing Bearings A22-129N1 ? Inch Size Slewing Rings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
